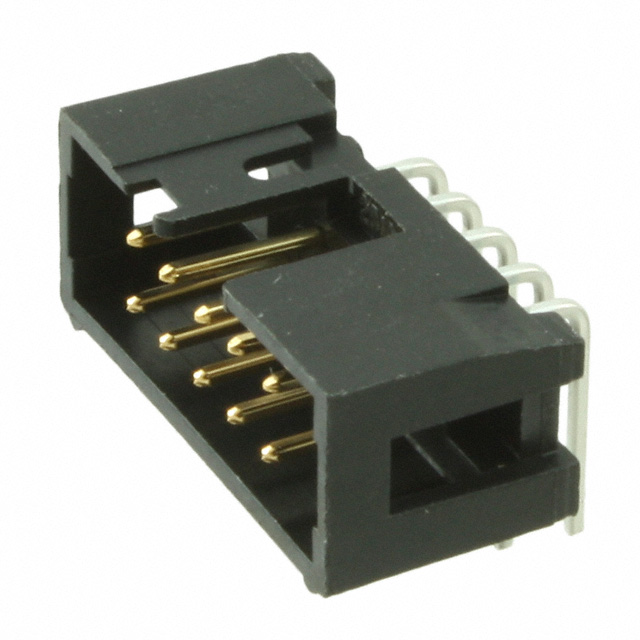

N2510-5003-RB
Or copy the link below:
- Mfr.Part #
- N2510-5003-RB
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 204
- In Stock ：
- 204
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~105°C
- Contact Finish - Post :
- Tin
- Style :
- Board to Board or Cable
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Current Rating (Amps) :
- 1.75A
- Contact Material :
- COPPER ALLOY
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 10
- Contact Length - Post :
- 0.155 3.94mm
- Series :
- 2500
- Contact Type :
- Male Pin
- Number of Rows :
- 2
- Published :
- 2009
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.243 6.17mm
- Insulation Height :
- 0.338 8.59mm
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Packaging :
- Bulk
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Feature :
- Keying Slot
- Factory Lead Time :
- 6 Weeks
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- Datasheets
- N2510-5003-RB
N2510-5003-RB Documents
2500 Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 10-Position Board to Board or Cable 0.338 8.59mm Height
N2510-5003-RB Overview
This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Bulk case.It's part of the 2500 Series.Many aspects of its Keying Slot feature increase its effectiveness.It runs at -55°C~105°C Operating Temperature.
N2510-5003-RB Features
2500 series
N2510-5003-RB Applications
There are a lot of 3M
N2510-5003-RB Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
