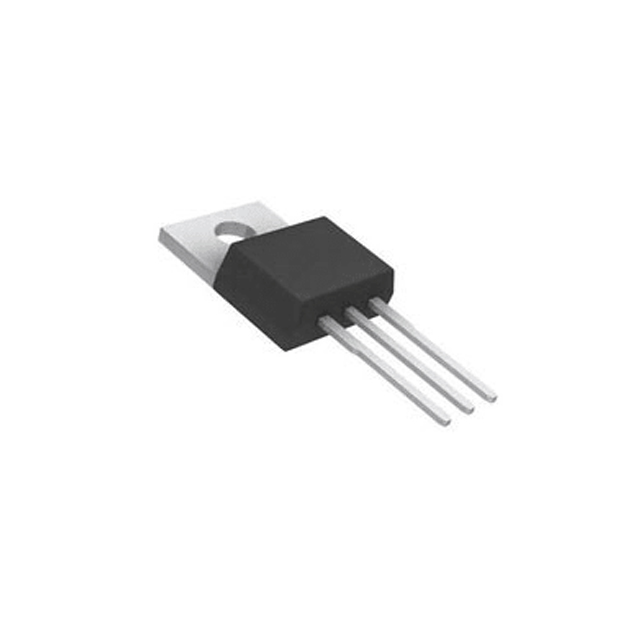

MUR3020PT

Manufacturer :

Solid State Inc.

Product Category :

Diodes - Rectifiers - Single

Pin Count :

3

Peak Reverse Current :

10μA

Reverse Recovery Time :

35 ns

Height :

12.2mm

Mounting Type :

Through Hole

Max Reverse Voltage (DC) :

200V

Diode Element Material :

SILICON

Voltage - Rated DC :

200V

HTS Code :

8541.10.00.80

RoHS Status :

RoHS Compliant

Width :

4.9mm

Mount :

Through Hole

Number of Elements :

2

Recovery Time :

35 ns

Max Operating Temperature :

175°C

Current Rating :

30A

Max Surge Current :

200A

JEDEC-95 Code :

TO-218AC

Breakdown Voltage :

200V

Peak Reflow Temperature (Cel) :

260

Additional Feature :

FREE WHEELING DIODE

Number of Terminations :

3

Average Rectified Current :

15A

Forward Voltage :

1.05V

Length :

15.2mm

Element Configuration :

Common Cathode

Lead Free :

Lead Free

Current - Reverse Leakage @ Vr :

10µA @ 200V

ECCN Code :

EAR99

Published :

1997

Voltage - Forward (Vf) (Max) @ If :

1.05V @ 15A

Number of Phases :

1

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 3 days ago)

Packaging :

Tube

Termination :

Through Hole

Terminal Finish :

Tin (Sn)

JESD-609 Code :

e3

Package / Case :

TO-218-3

Reverse Voltage :

200V

Operating Temperature - Junction :

-65°C~175°C

Peak Non-Repetitive Surge Current :

200A

Time@Peak Reflow Temperature-Max (s) :

40

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Min Operating Temperature :

-65°C

Diode Type :

Standard

Forward Current :

30A

Diode Configuration :

1 Pair Common Cathode

Terminal Position :

Single

REACH SVHC :

No SVHC

Max Forward Surge Current (Ifsm) :

200A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Repetitive Reverse Voltage (Vrrm) :

200V

Application :

Power

Pbfree Code :

yes

Series :

SWITCHMODE™

Number of Pins :

3

Base Part Number :

MUR3020PT

Qualification Status :

Not Qualified
