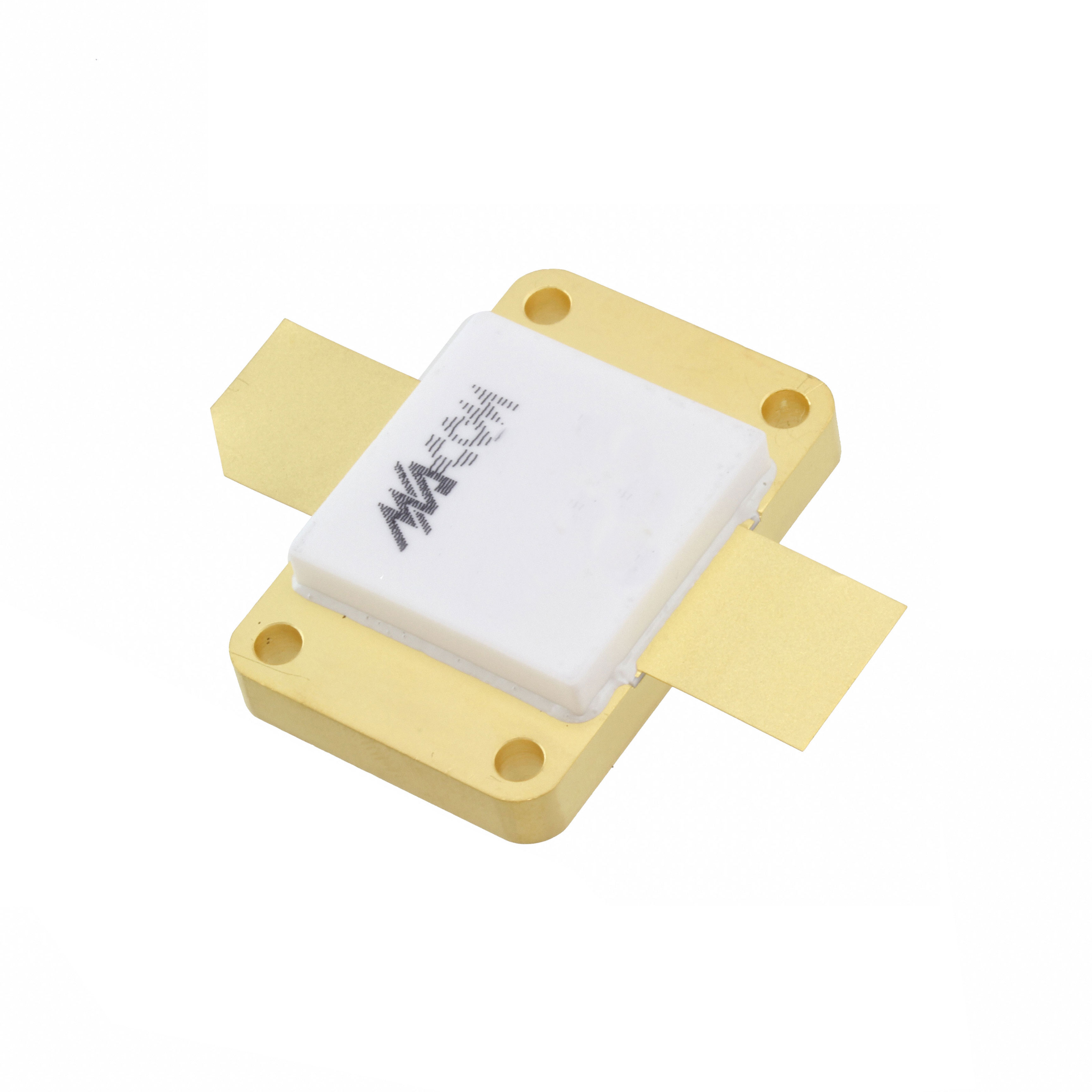

MRF157

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Number of Pins :

3

Package / Case :

368-03

Max Operating Temperature :

150°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

60A

Transistor Application :

AMPLIFIER

Pin Count :

2

JESD-30 Code :

R-XDFM-F2

Current - Test :

800mA

Radiation Hardening :

No

Continuous Drain Current (ID) :

60A

Power - Output :

600W

Max Power Dissipation :

1.35kW

Transistor Type :

N-Channel

Mount :

Screw

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Pbfree Code :

yes

Published :

2001

Number of Terminations :

2

Number of Elements :

1

Terminal Position :

Dual

RoHS Status :

ROHS3 Compliant

Packaging :

Tray

Case Connection :

SOURCE

Operating Mode :

ENHANCEMENT MODE

Element Configuration :

Single

Gain :

21dB

Frequency :

80MHz

Factory Lead Time :

20 Weeks

Drain to Source Voltage (Vdss) :

125V

ECCN Code :

EAR99

Lead Free :

Lead Free

Voltage - Test :

50V

Terminal Form :

Flat

Gate to Source Voltage (Vgs) :

40V

Min Operating Temperature :

-65°C
