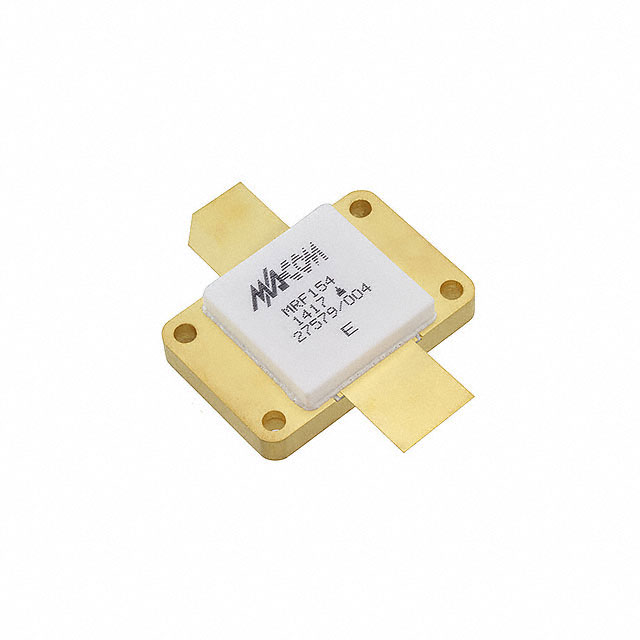

MRF154

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Mount :

Screw

Number of Pins :

3

Pin Count :

2

Frequency :

2MHz~100MHz

Published :

2009

Current - Test :

800mA

Number of Elements :

1

Factory Lead Time :

20 Weeks

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Gain :

17dB

Drain to Source Voltage (Vdss) :

125V

Case Connection :

SOURCE

Pbfree Code :

yes

ECCN Code :

EAR99

Packaging :

Tray

Power - Output :

600W

Gate to Source Voltage (Vgs) :

40V

Number of Terminations :

2

Current Rating :

60A

Radiation Hardening :

No

Operating Mode :

ENHANCEMENT MODE

Continuous Drain Current (ID) :

60A

Min Operating Temperature :

-65°C

Transistor Application :

AMPLIFIER

Transistor Type :

N-Channel

Package / Case :

368-03

Element Configuration :

Single

Terminal Form :

Flat

JESD-30 Code :

S-CDFM-F2

Max Operating Temperature :

150°C

Terminal Position :

Dual

Max Power Dissipation :

1.35kW

Voltage - Test :

50V
