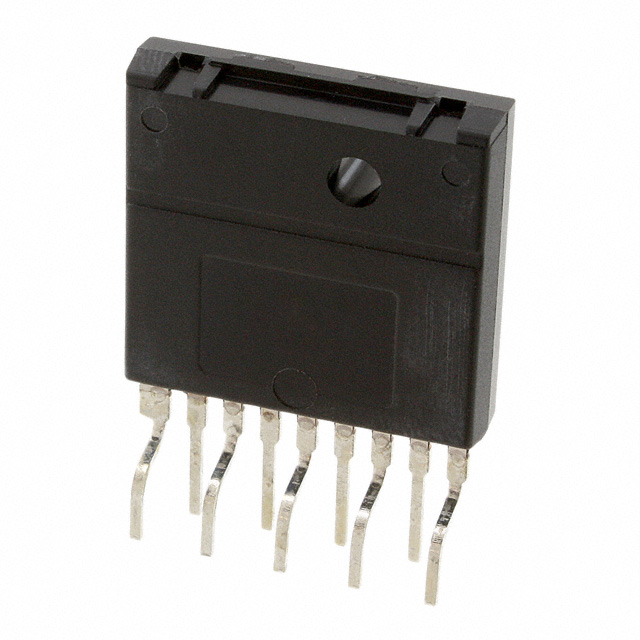

MPM04

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Product Status :

Obsolete

Published :

2013

Package / Case :

9-SIP Formed Leads

Voltage - Output 3 :

-

Voltage - Output 2 :

-

Series :

MPM

Package :

Bulk

RoHS Status :

RoHS Compliant

Voltage - Output 1 :

12 ~ 24V

Packaging :

Bulk

Min Operating Temperature :

-20 °C

Number of Outputs :

1

Features :

OCP, OTP, OVP, UVLO

Max Operating Temperature :

150 °C

RoHS :

Compliant

Efficiency :

91%

Mounting Type :

Through Hole

Voltage - Input (Min) :

16V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

23.876 mm

Lead Free :

Lead Free

Max Input Voltage :

40 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Min Input Voltage :

16 V

Voltage - Input (Max) :

40V

Width :

5.588 mm

Type :

Non-Isolated PoL Module

Pbfree Code :

yes

Size / Dimension :

0.94Lx0.22W x 0.91 H 24.0mmx23.0mmx5.5mm

Factory Lead Time :

12 Weeks

Power (Watts) :

72W

Mount :

Through Hole

Operating Temperature :

-20°C~150°C

Max Power Dissipation :

72W

Height :

23.114mm

Max Output Current :

3A

Feature :

OCP, OTP, OVP, UVLO

Applications :

ITE (Commercial)

Current - Output (Max) :

3A
