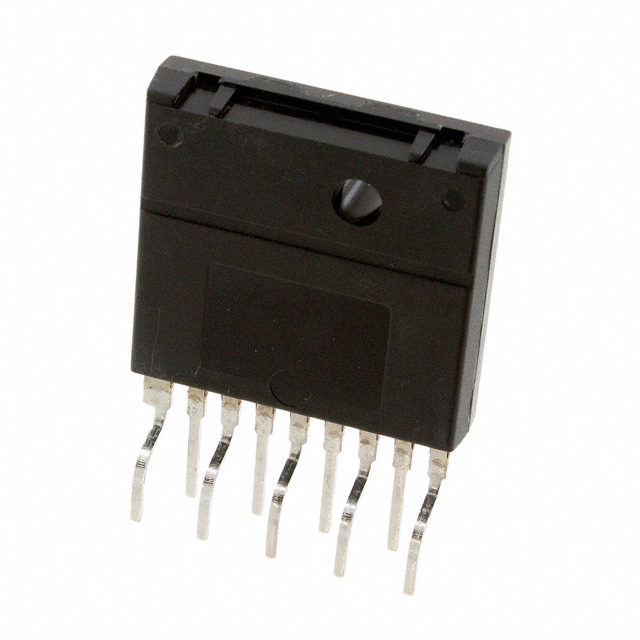

MPM01

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Voltage - Output 3 :

-

Max Input Voltage :

40 V

Package / Case :

9-SIP Formed Leads

Voltage - Input (Max) :

40V

Efficiency :

91%

Current - Output (Max) :

3A

Feature :

OCP, OTP, OVP, UVLO

Length :

23.876 mm

Packaging :

Bulk

Reach Compliance Code :

Unknown

Max Power Dissipation :

36W

Max Operating Temperature :

150 °C

RoHS Status :

RoHS Compliant

Voltage - Input (Min) :

9V

Min Operating Temperature :

-20 °C

Factory Lead Time :

12 Weeks

Applications :

ITE (Commercial)

Max Output Current :

3A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Published :

2013

Mount :

Through Hole

Product Status :

Obsolete

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Output 2 :

-

Power (Watts) :

36W

Series :

MPM

Type :

Non-Isolated PoL Module

Lead Free :

Lead Free

Operating Temperature :

-20°C~150°C

Number of Outputs :

1

RoHS :

Compliant

Width :

5.588 mm

Size / Dimension :

0.94Lx0.22W x 0.91 H 24.0mmx23.0mmx5.5mm

Pbfree Code :

yes

Package :

Bulk

Features :

OCP, OTP, OVP, UVLO

Voltage - Output 1 :

1.8 ~ 12V

Manufacturer :

Sanken Electric Co Ltd

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Input Voltage :

9 V

Analog IC - Other Type :

DC-DC REGULATED POWER SUPPLY MODULE

Height :

23.114mm

Mounting Type :

Through Hole
