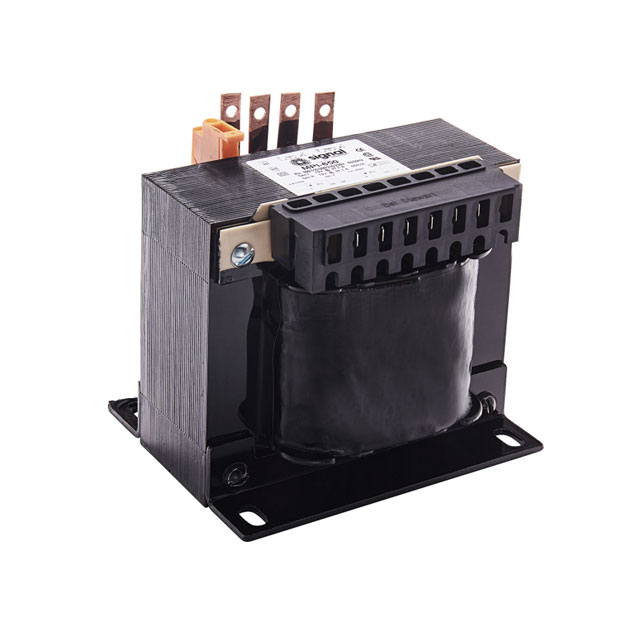

MPI-650-10

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Published :

2009

HTS Code :

8504.31.40.65

Termination :

Terminal Block

Type :

Laminated Core

Max Output Current :

65A

Voltage - Primary :

100V 115V 200V 215V 230V

ECCN Code :

EAR99

Secondary Winding(s) :

Dual

Termination Style :

Terminal Block

Height :

118mm

RoHS Status :

ROHS3 Compliant

Mount :

Chassis Mount

Approval Agency :

UL; CSA

Output Voltage 1 :

5V

Primary Winding(s) :

Dual, Multiple Taps

Max Power Dissipation :

650W

Lead Free :

Lead Free

Additional Feature :

TAPPED PRIMARIES ARE ALSO AVAILABLE

Weight :

15lbs 6.8kg

Voltage - Isolation :

4000Vrms

VA Rating :

650 VA

Factory Lead Time :

14 Weeks

Physical Dimension :

133.3mm X 112.5mm X 121.9mm

Mounting Type :

Chassis Mount

Length :

133.3mm

Center Tap :

No

Current - Output (Max) :

Parallel 130A Series 65A

Voltage - Secondary (Full Load) :

Parallel 5V Series 10V

Moisture Sensitivity Level (MSL) :

Not Applicable

Size / Dimension :

133.30mm Lx119.40mm W

Power - Max :

650VA

Output Voltage 2 :

5V

Height Seated (Max) :

117.80mm

Series :

MPI

Width :

112.5mm
