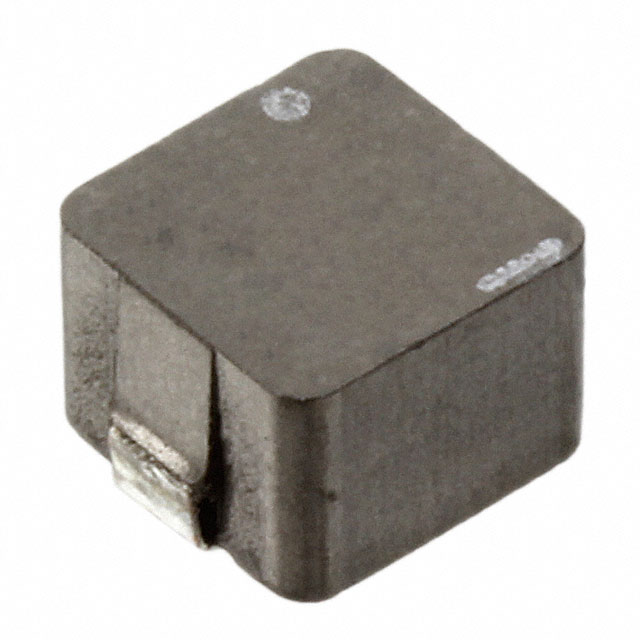

MPC0750LR68C

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Current Rating (Amps) :

18A

HTS Code :

8504.50.80.00

Number of Terminations :

2

Mounting Type :

Surface Mount

Tolerance :

±20%

Size / Dimension :

0.315Lx0.264W 8.00mmx6.70mm

Terminal Placement :

DUAL ENDED

Test Frequency :

0.1MHz

Inductor Application :

POWER INDUCTOR

Packaging :

Tape and Reel (TR)

Inductance Frequency - Test :

100kHz

Surface Mount :

yes

Series :

MPC

Rated Current-Max :

18A

Inductance :

680nH

Terminal Shape :

WRAPAROUND

Shape/Size Description :

RECTANGULAR PACKAGE

Number of Functions :

1

Height Seated (Max) :

0.197 5.00mm

Operating Temperature :

-20°C~120°C

Package / Case :

2-SMD, J-Lead

Published :

2006

ECCN Code :

EAR99

Inductance Tolerance :

20%

Inductor Type :

GENERAL PURPOSE INDUCTOR

Current - Saturation :

16A

DC Resistance (DCR) :

2.2mOhm Max

Shielding :

Shielded

Material - Core :

Ferrite

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

29 Weeks
