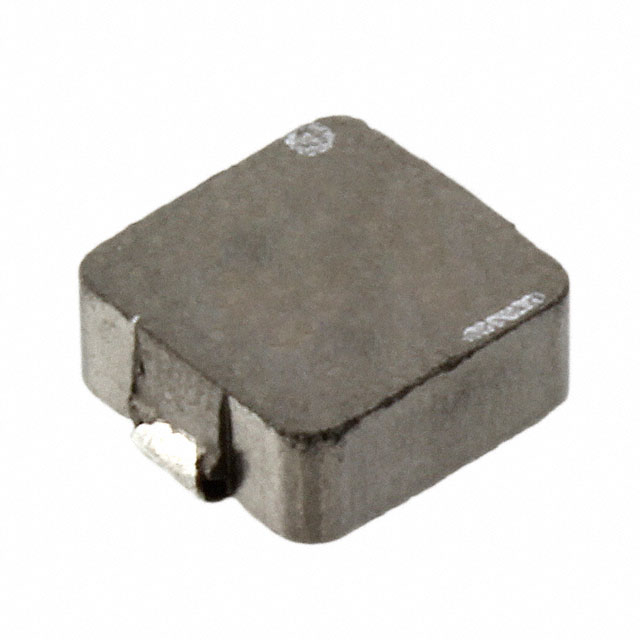

MPC0730LR20C

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Current - Saturation :

17.5A

Factory Lead Time :

20 Weeks

Tolerance :

±25%

Shape/Size Description :

RECTANGULAR PACKAGE

Shielding :

Shielded

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductor Application :

POWER INDUCTOR

Terminal Placement :

DUAL ENDED

HTS Code :

8504.50.80.00

Published :

2013

Inductance Frequency - Test :

100kHz

Rated Current-Max :

23A

Surface Mount :

yes

Height Seated (Max) :

0.157 4.00mm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Current Rating (Amps) :

23A

Mounting Type :

Surface Mount

Number of Functions :

1

Terminal Shape :

WRAPAROUND

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Inductance Tolerance :

25%

Series :

MPC

Number of Terminations :

2

Material - Core :

Ferrite

Package / Case :

2-SMD, J-Lead

Size / Dimension :

0.315Lx0.264W 8.00mmx6.70mm

DC Resistance (DCR) :

1.2mOhm Max

Operating Temperature :

-20°C~120°C

Test Frequency :

0.1MHz

Inductance :

200nH

ECCN Code :

EAR99
