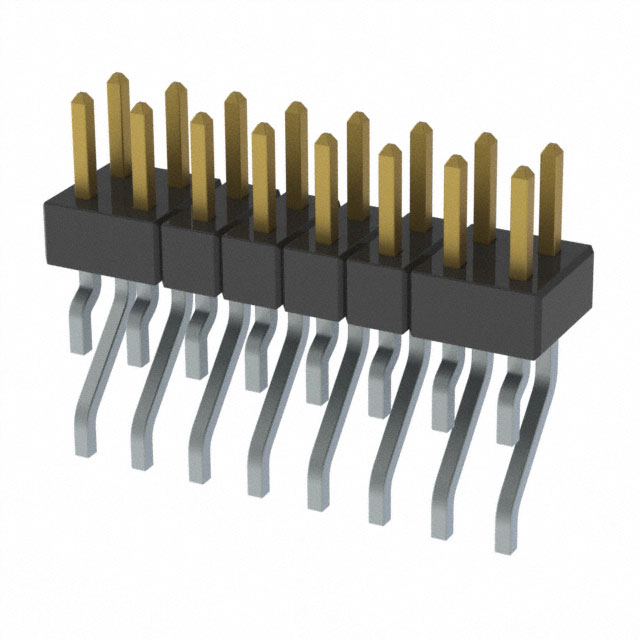

MMT-108-01-S-DH

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Mixed Contacts :

No

Contact Finish - Mating :

Gold

Termination :

Solder

Style :

Board to Board or Cable

Contact Shape :

Square

DIN Conformance :

No

Connector Type :

Header

Filter Feature :

No

Mounting Type :

Surface Mount, Right Angle

Total Number of Contacts :

16

Number of Positions Loaded :

All

Mating Contact Pitch :

0.079 inch

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Row Spacing - Mating :

0.079 (2.00mm)

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Contact Finish - Post :

Tin

Contact Material :

Phosphor Bronze

Shrouding :

Unshrouded

Reference Standard :

UL

Body Breadth :

0.157 inch

MIL Conformance :

No

Option :

GENERAL PURPOSE

Body Length or Diameter :

0.315 inch

Published :

2016

UL Flammability Code :

94V-0

Fastening Type :

Push-Pull

JESD-609 Code :

e3

Insulation Material :

Liquid Crystal Polymer (LCP)

IEC Conformance :

No

Packaging :

Bulk

Contact Length - Mating :

0.126 3.20mm

Contact Type :

Male Pin

Gender :

Male

Material Flammability Rating :

UL94 V-0

Radiation Hardening :

No

Plating Thickness :

30μin

Series :

MMT

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Insulation Color :

Black

Factory Lead Time :

3 Weeks

Number of Rows :

2

Current Rating (Amps) :

3A

Number of Positions :

16

Insulation Height :

0.157 4.00mm

Pitch - Mating :

0.079 2.00mm
