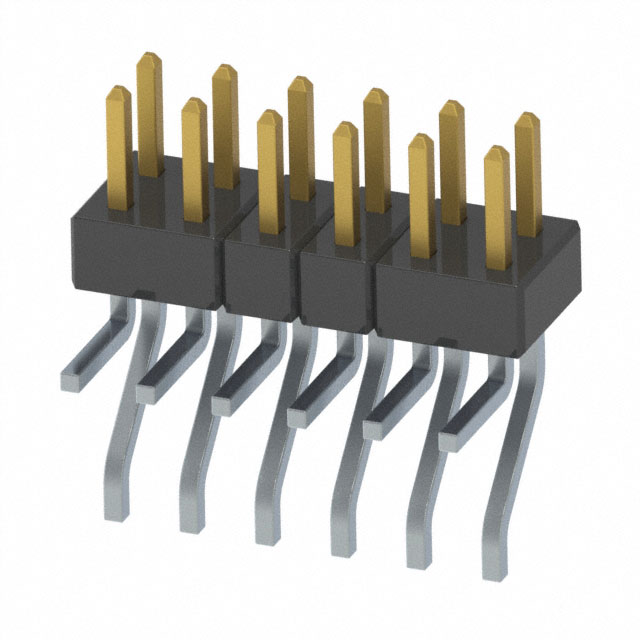

MMT-106-01-S-MT
Or copy the link below:
- Mfr.Part #
- MMT-106-01-S-MT
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 2MM
- Stock
- 6,130
- In Stock ：
- 6,130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- HTS Code :
- 8536.69.40.40
- ECCN Code :
- EAR99
- Insulation Height :
- 0.157 4.00mm
- JESD-609 Code :
- e3
- Fastening Type :
- Push-Pull
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Termination :
- Solder
- Pitch - Mating :
- 0.079 2.00mm
- Current Rating (Amps) :
- 3A
- Published :
- 2016
- DIN Conformance :
- No
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Number of Positions :
- 12
- Housing Material :
- Polymer
- UL Flammability Code :
- 94V-0
- Mixed Contacts :
- No
- Insulation Color :
- Black
- Contact Shape :
- Square
- Style :
- Board to Board or Cable
- Shrouding :
- Unshrouded
- IEC Conformance :
- No
- MIL Conformance :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Depth :
- 11.42mm
- Orientation :
- RIGHT ANGLE
- Total Number of Contacts :
- 12
- Contact Length - Mating :
- 0.126 3.20mm
- Gender :
- Male
- Radiation Hardening :
- No
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mounting Type :
- Surface Mount, Right Angle; Through Hole
- Connector Type :
- Header
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Packaging :
- Tape and Reel (TR)
- Feature :
- Pick and Place
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Operating Temperature :
- -55°C~125°C
- Series :
- MMT
- Option :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Length :
- 12mm
- Datasheets
- MMT-106-01-S-MT
MMT Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle; Through Hole Gold Liquid Crystal Polymer (LCP) 12-Position Board to Board or Cable 0.157 4.00mm Height
MMT-106-01-S-MT-P-TR Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle; Through Hole.Packaging is performed using a Tape & Reel (TR) case.It is part of the MMT Series of products.A number of features make it more powerful because of its Pick and Place feature.There is no operating temperature for the device.
MMT-106-01-S-MT-P-TR Features
MMT series
MMT-106-01-S-MT-P-TR Applications
There are a lot of Samtec Inc.
MMT-106-01-S-MT-P-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
