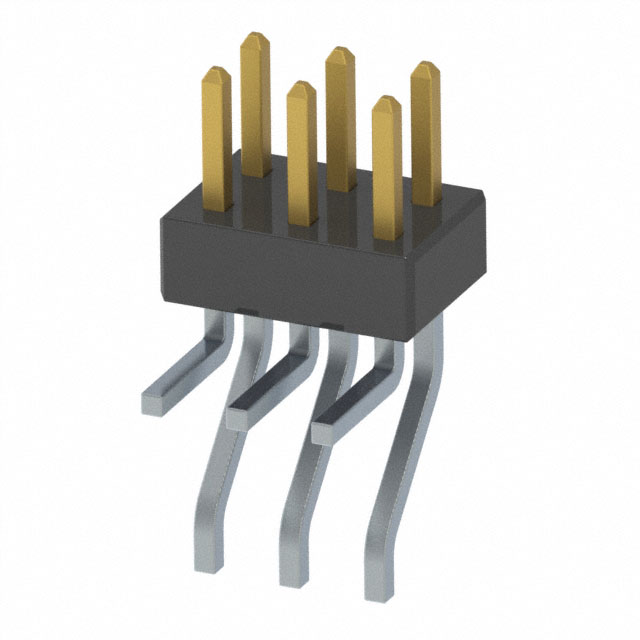

MMT-103-01-L-MT

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Contact Material :

Phosphor Bronze

Contact Finish - Post :

Tin

Reliability :

COMMERCIAL

Pitch - Mating :

0.079 2.00mm

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.079 (2.00mm)

Insulation Material :

Liquid Crystal Polymer (LCP)

Material Flammability Rating :

UL94 V-0

Style :

Board to Board or Cable

Factory Lead Time :

3 Weeks

Total Number of Contacts :

6

Series :

MMT

Insulation Height :

0.157 4.00mm

Contact Finish - Mating :

Gold

Contact Type :

Male Pin

Body Breadth :

0.157 inch

Mating Contact Pitch :

0.079 inch

Termination :

Solder

Reference Standard :

UL

Contact Length - Mating :

0.126 3.20mm

Mount :

Surface Mount

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

JESD-609 Code :

e3

Connector Type :

Header

Number of Rows :

2

Mixed Contacts :

No

Contact Shape :

Square

Shrouding :

Unshrouded

Length - Termination :

0.1 inch

REACH SVHC :

No SVHC

DIN Conformance :

No

Pbfree Code :

yes

IEC Conformance :

No

Filter Feature :

No

Plating Thickness :

10μin

Published :

2013

Insulation Color :

Black

Mounting Type :

Surface Mount, Right Angle; Through Hole

Contact Finish Thickness - Mating :

10.0μin 0.25μm

MIL Conformance :

No

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Number Of PCB Rows :

2

Fastening Type :

Push-Pull

Packaging :

Bulk

UL Flammability Code :

94V-0

Number of Positions :

6

Gender :

Male

Current Rating (Amps) :

3A

Number of Positions Loaded :

All
