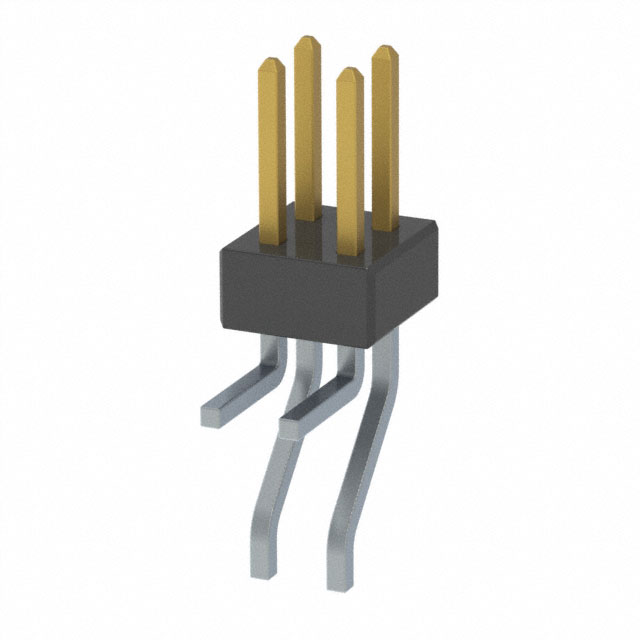

MMT-102-02-L-MT

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.079 (2.00mm)

Filter Feature :

No

Fastening Type :

Push-Pull

IEC Conformance :

No

Shrouding :

Unshrouded

Plating Thickness :

10μin

Reference Standard :

UL

Insulation Material :

Liquid Crystal Polymer (LCP)

Connector Type :

Header

DIN Conformance :

No

Mixed Contacts :

No

REACH SVHC :

No SVHC

Pbfree Code :

yes

ECCN Code :

EAR99

Contact Finish - Post :

Tin

Number of Conductors :

ONE

Insulation Color :

Black

Style :

Board to Board or Cable

Contact Finish - Mating :

Gold

Operating Temperature :

-55°C~125°C

Body Breadth :

0.157 inch

Number of Positions :

4

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Mount :

Through Hole

Radiation Hardening :

No

JESD-609 Code :

e3

MIL Conformance :

No

Number of Rows :

2

Packaging :

Bulk

Body Length or Diameter :

0.158 inch

Contact Type :

Male Pin

RoHS Status :

ROHS3 Compliant

Contact Shape :

Square

Contact Material :

Phosphor Bronze

Published :

2013

Pitch - Mating :

0.079 2.00mm

Insulation Height :

0.157 4.00mm

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Current Rating (Amps) :

3A

Option :

GENERAL PURPOSE

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Mounting Type :

Surface Mount, Right Angle; Through Hole

Mating Contact Pitch :

0.079 inch

Series :

MMT

Length - Termination :

0.1 inch

Reliability :

COMMERCIAL

Gender :

Male

Contact Length - Mating :

0.175 4.45mm

Total Number of Contacts :

4

Number of Positions Loaded :

All
