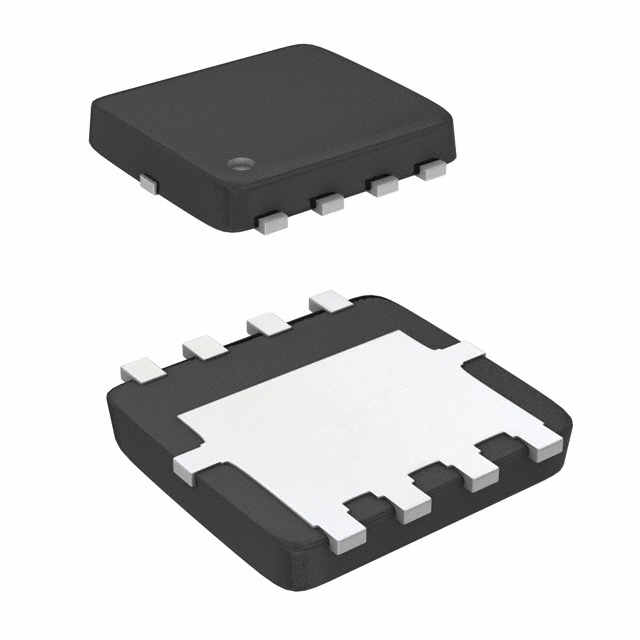

MCG65N03-TP
Or copy the link below:
- Mfr.Part #
- MCG65N03-TP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- 8-VDFN Exposed Pad
- Datasheet
- Download
- Description
- N-CHANNEL MOSFET, DFN3333
- Stock
- 9,846
- In Stock ：
- 9,846
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Package :
- Digi-Reel?
- FET Feature :
- -
- Manufacturer :
- Micro Commercial Components (MCC)
- Drive Voltage (Max Rds On, Min Rds On) :
- 4.5V, 10V
- Subcategory :
- MOSFETs
- Power Dissipation (Max) :
- 75W (Tj)
- Rds On (Max) @ Id, Vgs :
- 3.2mOhm @ 20A, 10V
- Package / Case :
- 8-VDFN Exposed Pad
- Gate Charge (Qg) (Max) @ Vgs :
- 92.7 nC @ 10 V
- Vgs(th) (Max) @ Id :
- 2.5V @ 250μA
- Mounting Type :
- Surface Mount
- Input Capacitance (Ciss) (Max) @ Vds :
- 4498 pF @ 15 V
- Supplier Device Package :
- DFN3333
- Current - Continuous Drain (Id) @ 25°C :
- 65A
- Vgs (Max) :
- ±20V
- Product Category :
- MOSFET
- Operating Temperature :
- -55°C ~ 150°C (TJ)
- Brand :
- Micro Commercial Components (MCC)
- RoHS :
- Details
- Series :
- -
- Product Type :
- MOSFET
- Packaging :
- Cut Tape
- Base Product Number :
- MCG65N03
- FET Type :
- N-Channel
- Product Status :
- Active
- Drain to Source Voltage (Vdss) :
- 30 V
- Datasheets
- MCG65N03-TP
MCG65N03-TP Documents
N-Channel Cut Tape 3.2mOhm @ 20A, 10V ±20V 4498 pF @ 15 V 92.7 nC @ 10 V 30 V 8-VDFN Exposed Pad
MCG65N03-TP Overview
Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 4498 pF @ 15 V maximal input capacitance.To operate this transistor, you will need a 30 V drain to source voltage (Vdss).
MCG65N03-TP Features
a 30 V drain to source voltage (Vdss)
MCG65N03-TP Applications
There are a lot of Micro Commercial Co
MCG65N03-TP applications of single MOSFETs transistors.
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
