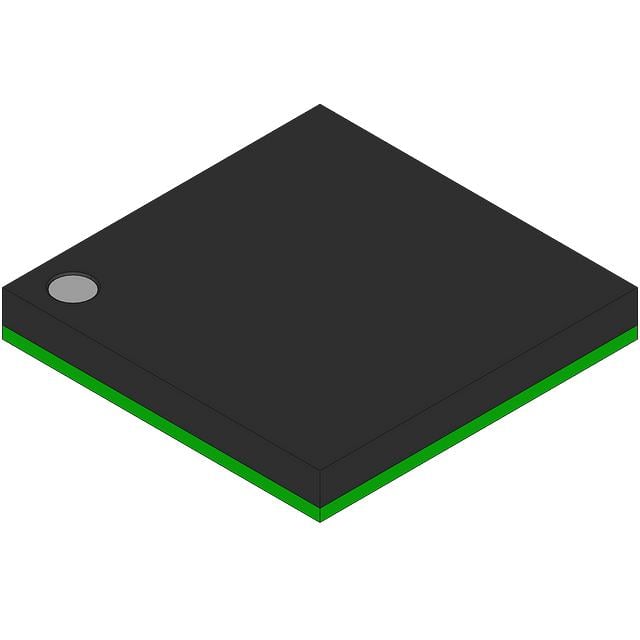

MCF52221CVM80

Manufacturer :

Freescale Semiconductor

Product Category :

Microcontrollers

Height Seated (Max) :

1.6mm

Published :

2005

Supply Voltage-Max (Vsup) :

3.6V

Factory Lead Time :

12 Weeks

JESD-30 Code :

S-PBGA-B81

Width :

10mm

Series :

MCF5222x

Terminal Finish :

TIN SILVER COPPER

Packaging :

Tray

Core Processor :

Coldfire V2

Has ADC :

yes

RAM Size :

16K x 8

ECCN Code :

3A991.A.2

DMA Channels :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

JESD-609 Code :

e1

Terminal Position :

BOTTOM

Core Size :

32-Bit

Surface Mount :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Program Memory Type :

Flash

Oscillator Type :

Internal

Mounting Type :

Surface Mount

Connectivity :

I2C, SPI, UART/USART, USB OTG

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Number of Terminations :

81

Terminal Pitch :

1mm

RoHS Status :

ROHS3 Compliant

HTS Code :

8542.31.00.01

Length :

10mm

Supply Voltage-Min (Vsup) :

3V

ROM (words) :

131072

Peripherals :

DMA, LVD, POR, PWM, WDT

Bit Size :

32

Terminal Form :

Ball

Program Memory Size :

128KB 128K x 8

Supply Voltage :

3.3V

Speed :

80MHz

Voltage - Supply (Vcc/Vdd) :

3V~3.6V

Package / Case :

81-LBGA

Power Supplies :

3/3.3V

Operating Temperature :

-40°C~85°C

PWM Channels :

yes

Qualification Status :

Not Qualified

Number of I/O :

56

Clock Frequency :

80MHz

Base Part Number :

MCF52221

DAC Channels :

No

Peak Reflow Temperature (Cel) :

260

Data Converter :

A/D 8x12b
