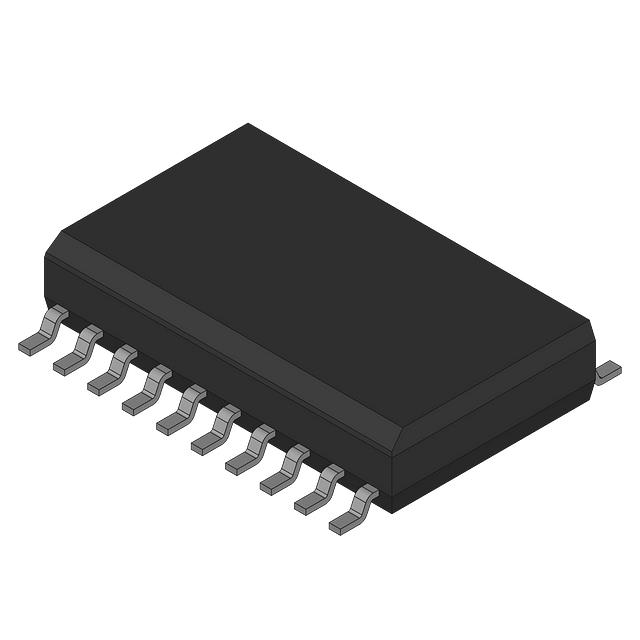

MC9S08PT8VWJ
Or copy the link below:
- Mfr.Part #
- MC9S08PT8VWJ
- Manufacturer
- Freescale Semiconductor
- Package / Case
- 20-SOIC (0.295, 7.50mm Width)
- Datasheet
- Download
- Description
- S08PT 8-BIT MCU S08 CORE
- Stock
- 14,919
- In Stock ：
- 14,919
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Freescale Semiconductor
- Product Category :
- Microcontrollers
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Low Power Mode :
- yes
- Program Memory Size :
- 8KB 8K x 8
- Terminal Pitch :
- 1.27mm
- Bit Size :
- 8
- Peripherals :
- LVD, POR, PWM, WDT
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- RoHS Status :
- ROHS3 Compliant
- Data Converter :
- A/D 12x12b
- Number of Terminations :
- 20
- Peak Reflow Temperature (Cel) :
- 260
- Supply Voltage-Max (Vsup) :
- 5.5V
- Format :
- FIXED POINT
- Program Memory Type :
- Flash
- JESD-609 Code :
- e3
- Terminal Position :
- Dual
- Boundary Scan :
- No
- Supply Voltage :
- 5V
- Voltage - Supply (Vcc/Vdd) :
- 2.7V~5.5V
- Supply Voltage-Min (Vsup) :
- 2.7V
- Terminal Form :
- Gull wing
- Operating Temperature :
- -40°C~105°C TA
- Supply Current-Max :
- 14mA
- RAM Size :
- 2K x 8
- Mounting Type :
- Surface Mount
- Package / Case :
- 20-SOIC (0.295, 7.50mm Width)
- Clock Frequency :
- 20MHz
- Speed :
- 20MHz
- Series :
- S08
- Core Size :
- 8-Bit
- Qualification Status :
- Not Qualified
- Surface Mount :
- yes
- HTS Code :
- 8542.31.00.01
- uPs/uCs/Peripheral ICs Type :
- MICROPROCESSOR, RISC
- Oscillator Type :
- Internal
- Integrated Cache :
- No
- Power Supplies :
- 3/5V
- Connectivity :
- I2C, LINbus, SPI, UART/USART
- Number of I/O :
- 18
- JESD-30 Code :
- R-PDSO-G20
- Base Part Number :
- MC9S08PT8
- ROM (words) :
- 8192
- Packaging :
- Tube
- EEPROM Size :
- 256 x 8
- Published :
- 2002
- Terminal Finish :
- Matte Tin (Sn)
- ECCN Code :
- 3A991.A.2
- Datasheets
- MC9S08PT8VWJ
MC9S08PT8VWJ Documents
Microcontrollers Freescale Semiconductor MC9S08PT8VWJ Overview
The Freescale Semiconductor MC9S08PT8VWJ microcontroller integrates advanced control capabilities with the efficiency of S08 core technology, making it an ideal solution for a diverse range of demanding applications. This microcontroller is designed to offer a robust combination of performance and power efficiency, essential for today's high-demand electronics. Its compact footprint and comprehensive feature set are tailored to meet the stringent requirements of both simple and complex embedded systems, thereby providing significant versatility. With the integration of this Microcontrollers Freescale Semiconductor MC9S08PT8VWJ device, developers can create highly responsive and efficient applications across various sectors.
MC9S08PT8VWJ Features
The MC9S08PT8VWJ boasts a range of features designed to enhance its functionality and adaptability. This includes a powerful 8-bit S08 core processor that ensures smooth and efficient operations, even in multitasking environments. It also features a wide range of I/O options, enhanced security protocols, and extended temperature range capabilities, making it exceptionally well-suited for industrial-grade applications. Additionally, the device supports various communication protocols, ensuring easy integration into existing technology frameworks.
MC9S08PT8VWJ Applications
- Automotive Control Systems: Utilized in engine management and vehicle stability control systems to enhance performance and safety through precise sensor data processing and actuator control.
- Consumer Electronics: Empowers smart appliances and home automation devices, providing core functionality for user interfaces and connectivity solutions.
- Industrial Automation: Plays a critical role in automated manufacturing processes, where reliability and accuracy are paramount for monitoring and control tasks.
- Medical Devices: Key component in portable medical instruments, facilitating real-time patient monitoring and diagnostics with high reliability.
