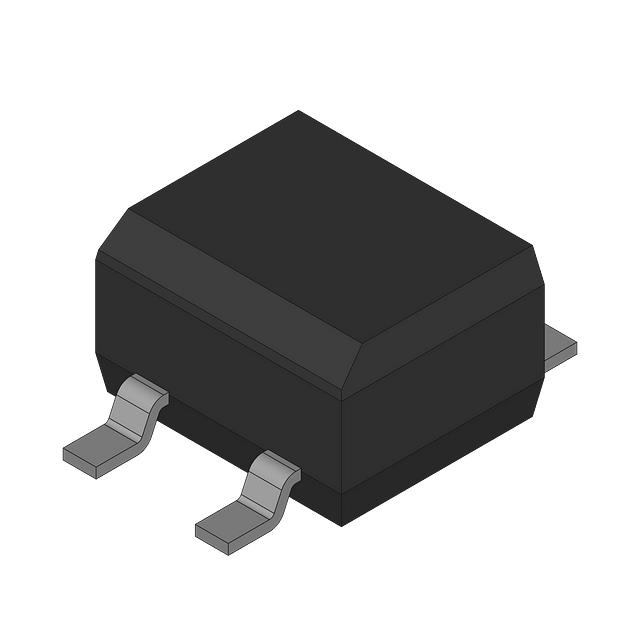

MB1S

Manufacturer :

onsemi

Product Category :

Diodes - Rectifiers - Single

Factory Lead Time :

12 Weeks

RoHS Status :

ROHS3 Compliant

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

REACH SVHC :

No SVHC

Voltage - Forward (Vf) (Max) @ If :

1V @ 500mA

Package / Case :

TO-269AA, 4-BESOP

Max Reverse Leakage Current :

5μA

Mount :

Surface Mount

Voltage - Rated :

16V

Voltage - Rated DC :

100V

Peak Non-Repetitive Surge Current :

35A

Max Junction Temperature (Tj) :

150°C

Peak Reverse Current :

5μA

Case Code (Imperial) :

0603

Max Power Dissipation :

1.4W

Supplier Device Package :

4-SOIC

Tolerance :

10%

Weight :

228mg

Max Repetitive Reverse Voltage (Vrrm) :

100V

Thickness :

939.8μm

Termination :

SMD/SMT

Current Rating :

500mA

Mounting Type :

Surface Mount

Number of Pins :

4

Current - Reverse Leakage @ Vr :

5µA @ 100V

Packaging :

Tape and Reel (TR)

Operating Temperature :

-55°C~150°C TJ

Published :

2014

Max Surge Current :

35A

Max Forward Surge Current (Ifsm) :

35A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case Code (Metric) :

1608

Length :

3.2004mm

Capacitance :

13pF

Width :

4.2mm

Height :

2.9mm

Output Current :

500mA

Reverse Voltage :

100V

Lead Free :

Lead Free

Radiation Hardening :

No

Forward Voltage :

1V

Max Operating Temperature :

150°C

Average Rectified Current :

500mA

Diode Type :

Single Phase

Number of Elements :

1

Current - Average Rectified (Io) :

500mA

Element Configuration :

Single

Forward Current :

500mA

Min Operating Temperature :

-55°C

Voltage - Peak Reverse (Max) :

100V

Base Part Number :

MB1

Power Dissipation :

1.4W

Contact Plating :

Tin
