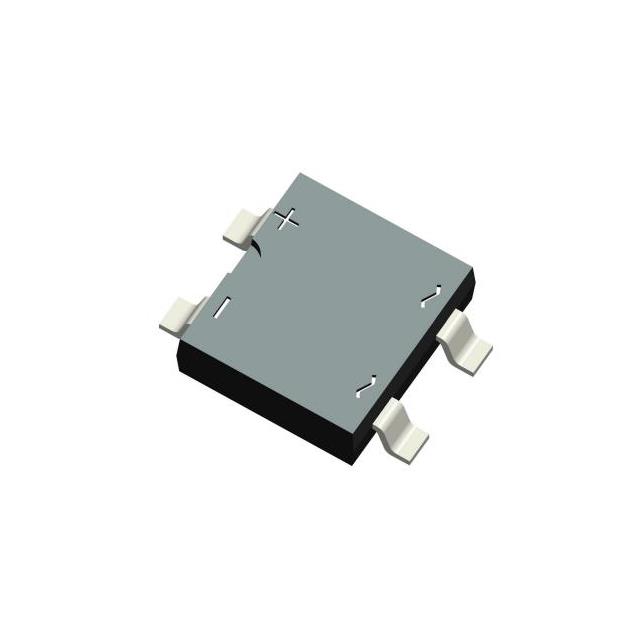

MB1S

Manufacturer :

SMC Diode Solutions

Product Category :

Diodes - Bridge Rectifiers

Forward Voltage :

1V

Contact Plating :

Tin

Case Code (Metric) :

1608

Mounting Type :

Surface Mount

Number of Elements :

1

Min Operating Temperature :

-55°C

Lead Free :

Lead Free

Max Reverse Leakage Current :

5μA

Height :

2.9mm

Max Operating Temperature :

150°C

Weight :

228mg

Max Surge Current :

35A

Diode Type :

Single Phase

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Power Dissipation :

1.4W

REACH SVHC :

No SVHC

Case Code (Imperial) :

0603

Current - Average Rectified (Io) :

500mA

Package / Case :

TO-269AA, 4-BESOP

Element Configuration :

Single

Average Rectified Current :

500mA

Max Forward Surge Current (Ifsm) :

35A

Current - Reverse Leakage @ Vr :

5µA @ 100V

Voltage - Forward (Vf) (Max) @ If :

1V @ 500mA

Max Junction Temperature (Tj) :

150°C

Max Power Dissipation :

1.4W

Capacitance :

13pF

Peak Non-Repetitive Surge Current :

35A

Packaging :

Tape and Reel (TR)

Current Rating :

500mA

Number of Pins :

4

Tolerance :

10%

Thickness :

939.8μm

Supplier Device Package :

4-SOIC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Voltage :

100V

Voltage - Rated :

16V

Voltage - Peak Reverse (Max) :

100V

Base Part Number :

MB1

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Radiation Hardening :

No

Forward Current :

500mA

Max Repetitive Reverse Voltage (Vrrm) :

100V

Termination :

SMD/SMT

Voltage - Rated DC :

100V

Published :

2014

Peak Reverse Current :

5μA

Output Current :

500mA

Length :

3.2004mm

Operating Temperature :

-55°C~150°C TJ

Factory Lead Time :

12 Weeks

Width :

4.2mm
