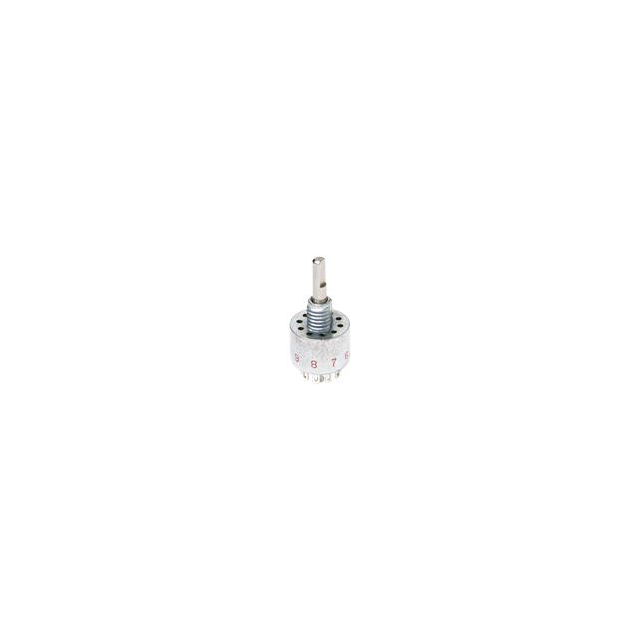

MB04L3NZGF

Manufacturer :

C&K

Product Category :

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Number of Poles per Deck :

2

Number of Positions :

4

Actuator Type :

Round (3.17mm Dia)

Max Operating Temperature :

85°C

Contact Timing :

Non-Shorting (BBM)

Current Rating (Amps) :

250mA AC/DC

Series :

M

Index Stops :

FIXED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (DC) :

28V

Throw Configuration :

DP4T

Factory Lead Time :

20 Weeks

Contact Material :

COPPER ALLOY

Feature :

IP67 - Dust Tight, Waterproof

Angle of Throw :

36°

Mounting Type :

Panel Mount

Termination Style :

Solder Lug

Depth :

13.34mm

Mount :

Panel

Voltage - Rated AC :

125V

Contact Plating :

Gold, Silver

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

Max Current Rating :

250mA

Circuit per Deck :

DP4T

Termination :

Solder

Current Rating :

250mA

Actuator Length :

10.16mm

Index Angle :

36 °

Voltage - Rated DC :

28V

Number of Decks :

1

Operating Force :

2.880 ~ 5.041gfm

Min Operating Temperature :

-30°C

Depth Behind Panel :

14.86mm

Length :

13.34mm

Contact Style :

Non-Shorting

Max Voltage Rating (AC) :

125V
