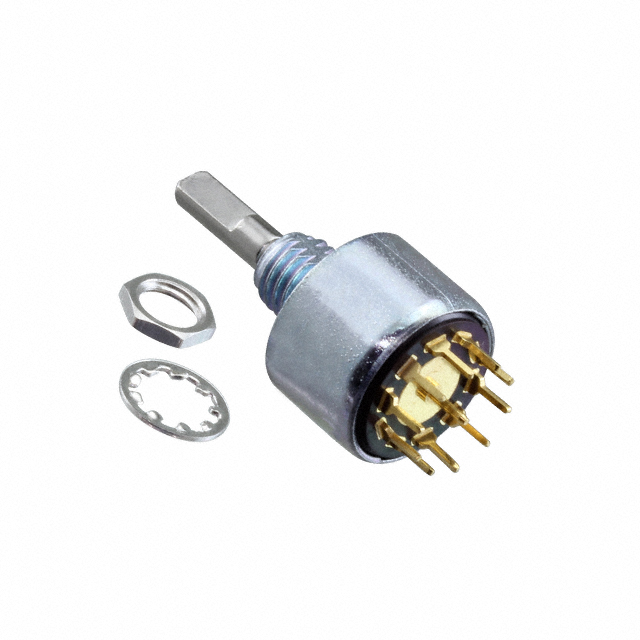

MB04L1NCGD
Or copy the link below:
- Mfr.Part #
- MB04L1NCGD
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 4POS 250MA 125V
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Depth Behind Panel :
- 10.42mm
- RoHS Status :
- ROHS3 Compliant
- Max Operating Temperature :
- 85°C
- Max Current Rating :
- 250mA
- Max Voltage Rating (DC) :
- 28V
- Circuit per Deck :
- DP4T
- Mounting Type :
- Panel Mount, Through Hole
- Depth :
- 13.34mm
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 4
- Length :
- 13.34mm
- Contact Style :
- Non-Shorting
- Series :
- M
- Contact Plating :
- Gold, Silver
- Current Rating (Amps) :
- 250mA AC/DC
- Operating Force :
- 2.880 ~ 5.041gfm
- Termination Style :
- PC Pin
- Mount :
- Panel, Through Hole
- Max Voltage Rating (AC) :
- 125V
- Actuator Length :
- 10.16mm
- Voltage - Rated DC :
- 28V
- Voltage - Rated AC :
- 125V
- Current Rating :
- 250mA
- Panel Cutout Dimensions :
- Circular - 6.60mm Dia
- Index Angle :
- 36 °
- Actuator Type :
- Flatted (3.17mm Dia)
- Number of Poles per Deck :
- 2
- Contact Finish :
- Gold
- Min Operating Temperature :
- -30°C
- Contact Timing :
- Non-Shorting (BBM)
- Termination :
- PC Pins
- Number of Decks :
- 1
- Factory Lead Time :
- 20 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Index Stops :
- FIXED
- Datasheets
- MB04L1NCGD
