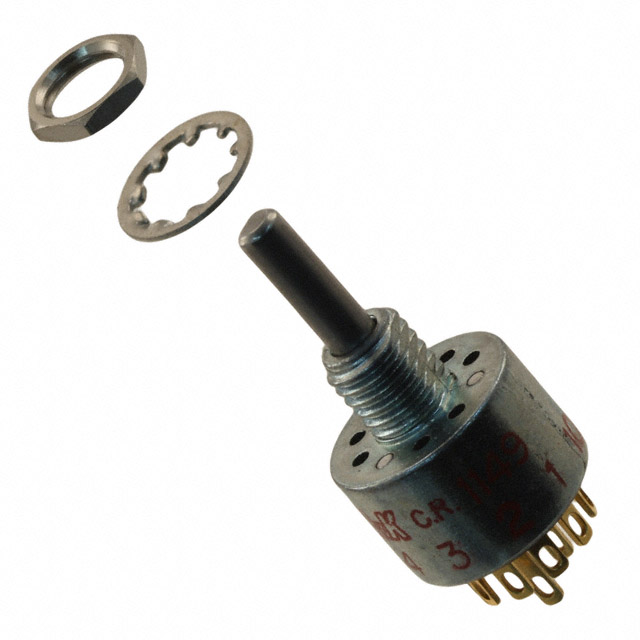

MB03S1NZGF
Or copy the link below:
- Mfr.Part #
- MB03S1NZGF
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 3POS 250MA 125V
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Max Operating Temperature :
- 85°C
- Number of Positions :
- 3
- Index Angle :
- 36 °
- Series :
- M
- Termination Style :
- Solder Lug
- Min Operating Temperature :
- -30°C
- Contact Finish :
- Gold
- Max Voltage Rating (AC) :
- 125V
- Number of Poles per Deck :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (DC) :
- 28V
- Actuator Type :
- Flatted (3.17mm Dia)
- Index Stops :
- FIXED
- Number of Decks :
- 1
- Max Current Rating :
- 250mA
- Voltage - Rated DC :
- 28V
- Contact Style :
- Non-Shorting
- Mount :
- Panel
- Contact Material :
- COPPER ALLOY
- Depth :
- 13.34mm
- Operating Force :
- 2.880 ~ 5.041gfm
- Panel Cutout Dimensions :
- Circular - 6.60mm Dia
- Actuator Length :
- 10.16mm
- Length :
- 13.34mm
- Current Rating :
- 250mA
- Depth Behind Panel :
- 14.86mm
- Termination :
- Solder
- Mounting Type :
- Panel Mount
- Feature :
- IP67 - Dust Tight, Waterproof
- Voltage - Rated AC :
- 125V
- Current Rating (Amps) :
- 250mA AC/DC
- Factory Lead Time :
- 20 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Timing :
- Non-Shorting (BBM)
- Circuit per Deck :
- DP3T
- Contact Plating :
- Gold, Silver
- Datasheets
- MB03S1NZGF
