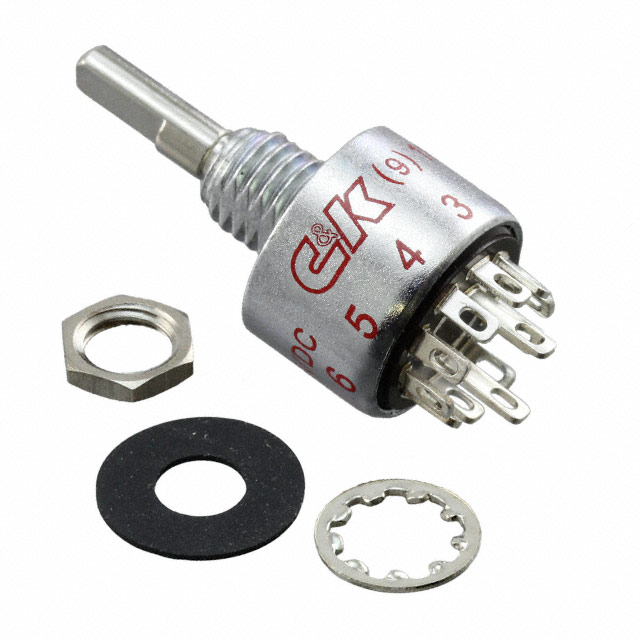

MB03L1NZQF

Manufacturer :

C&K

Product Category :

Contact Material :

COPPER ALLOY

Operating Force :

2.880 ~ 5.041gfm

Housing Material :

Zinc

Orientation :

Straight

Termination :

Lug

Depth :

13.34mm

Factory Lead Time :

20 Weeks

Actuator Type :

Flatted (3.17mm Dia)

Feature :

IP67 - Dust Tight, Waterproof

Index Stops :

FIXED

Circuit per Deck :

DP3T

Actuator Length :

10.16mm

Voltage - Rated AC :

125V

Termination Style :

Solder Lug

Number of Decks :

1

Contact Style :

Non-Shorting

Published :

2012

Number of Positions :

3

Index Angle :

36 °

Mounting Type :

Panel Mount

Throw Configuration :

DP3T, SPDT

Mount :

Panel

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Lead Free :

Lead Free

Max Voltage Rating (AC) :

125V

Length :

13.34mm

Contact Timing :

Non-Shorting (BBM)

Min Operating Temperature :

-30°C

Current Rating (Amps) :

250mA AC/DC

Electrical Life :

10000 Cycles

Max Voltage Rating (DC) :

28V

Number of Poles per Deck :

2

Contact Finish :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

M

Radiation Hardening :

No

Voltage - Rated DC :

28V

Current Rating :

250mA

Actuator Material :

Stainless Steel

RoHS Status :

ROHS3 Compliant

Depth Behind Panel :

14.86mm

Max Operating Temperature :

85°C

Max Current Rating :

250mA
