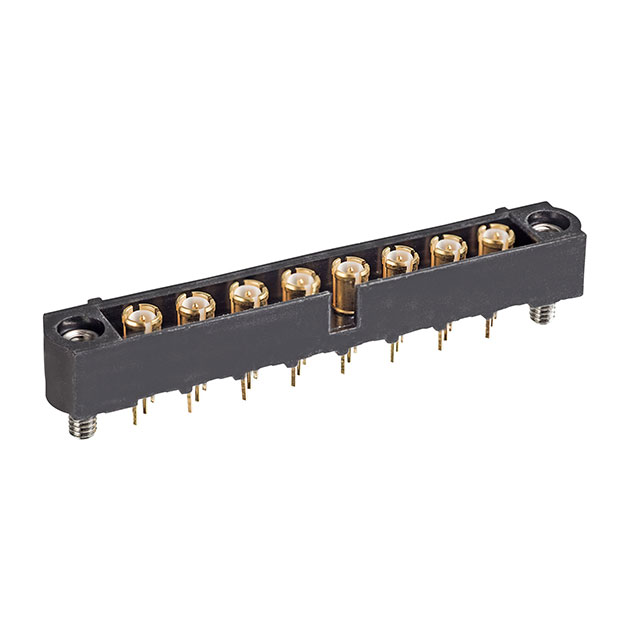

M80-MV311M2-08
Or copy the link below:
- Mfr.Part #
- M80-MV311M2-08
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4MM
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Published :
- 2015
- Contact Shape :
- Circular
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.220 5.60mm
- Connector Type :
- Header
- Mount :
- Through Hole
- Series :
- Datamate Coax
- Packaging :
- Tube
- Contact Finish - Mating :
- NOT SPECIFIED
- Style :
- Board to Board or Cable
- Operating Temperature :
- -55°C~125°C
- Contact Length - Post :
- 0.177 4.50mm
- Termination :
- Solder
- Feature :
- Mating Flange, Mounting Flange
- Mounting Type :
- Through Hole
- Fastening Type :
- Threaded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 8 (Coax)
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Pitch - Mating :
- 0.157 4.00mm
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Number of Pins :
- 8
- Factory Lead Time :
- 13 Weeks
- Stack Height (Mating) :
- 7.30mm 9.70mm 9.75mm
- Insulation Color :
- Black
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Male Pin, Coaxial
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- M80-MV311M2-08
M80-MV311M2-08 Documents
Datamate Coax Series 1-Row Header Solder Copper Alloy Tube Through Hole NOT SPECIFIED Polyphenylene Sulfide (PPS), Glass Filled 8 (Coax)-Position Board to Board or Cable 0.220 5.60mm Height
M80-MV311M2-08 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Datamate Coax Series.It is equipped with 8 pins.In many ways, Mating Flange, Mounting Flange makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
M80-MV311M2-08 Features
Datamate Coax series
M80-MV311M2-08 Applications
There are a lot of Harwin Inc.
M80-MV311M2-08 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
