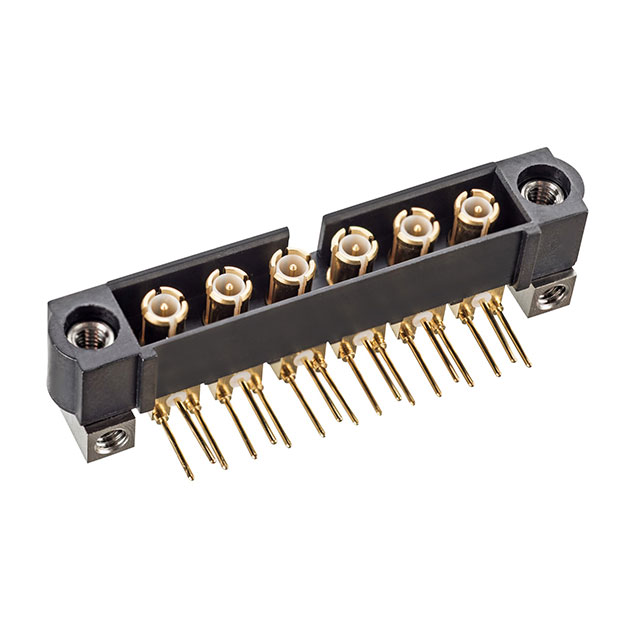

M80-MH314M5-06

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Number of Rows :

1

Insulation Height :

0.220 5.60mm

Mounting Type :

Through Hole, Right Angle

Number of Pins :

6

Style :

Board to Board or Cable

Contact Finish - Mating :

Gold

Mount :

Through Hole

Published :

2015

Mixed Contacts :

yes

Number of Positions :

6 (Coax)

Factory Lead Time :

13 Weeks

Body Depth :

0.339 inch

Reach Compliance Code :

not_compliant

Pitch - Mating :

0.157 4.00mm

Reliability :

COMMERCIAL

Series :

Datamate Coax

Durability :

500 Cycles

Number of Conductors :

ONE

Connector Type :

Header

Packaging :

Tube

Insulation Color :

Black

Contact Shape :

Circular

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Mating Flange, Mounting Flange

ECCN Code :

EAR99

Shrouding :

Shrouded - 4 Wall

Body Breadth :

0.238 inch

RoHS Status :

ROHS3 Compliant

Fastening Type :

Threaded

Contact Type :

Male Pin, Coaxial

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Termination :

Solder

Total Number of Contacts :

6
