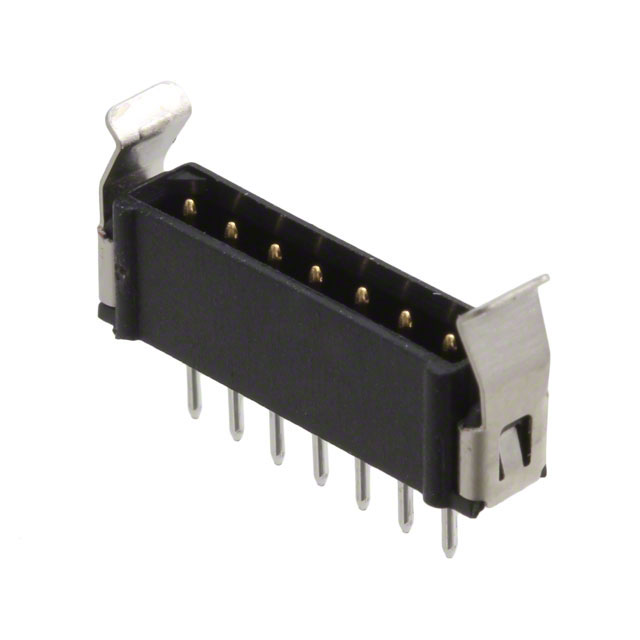

M80-8810742

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Circular

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Current Rating (Amps) :

2.2A

Filter Feature :

No

Mixed Contacts :

No

Contact Plating :

Gold, Tin

IEC Conformance :

No

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.118 3.00mm

DIN Conformance :

No

Style :

Board to Board or Cable

Contact Type :

Male Pin

Contact Resistance :

25mOhm

Published :

2012

Contact Material :

Phosphor Bronze

Contact Finish - Post :

Tin

Number of Positions :

7

Number of Rows :

1

Connector Type :

Header

Contact Finish - Mating :

Gold

Insulation Height :

0.219 5.56mm

Mount :

Through Hole

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

800V

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

JESD-609 Code :

e3

Pitch - Mating :

0.079 2.00mm

Number Of PCB Rows :

1

Reference Standard :

UL

Plating Thickness :

30μin

Package / Case :

SIL

Number of Positions Loaded :

All

Number of Conductors :

ONE

Termination :

Solder

Packaging :

Tube

Additional Feature :

LATCHED

Mounting Type :

Through Hole

Factory Lead Time :

7 Weeks

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Insulation Color :

Black

Terminal Pitch :

2mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Reliability :

COMMERCIAL

Series :

Datamate L-Tek

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Fastening Type :

Friction Lock

Durability :

500 Cycles

Pbfree Code :

yes
