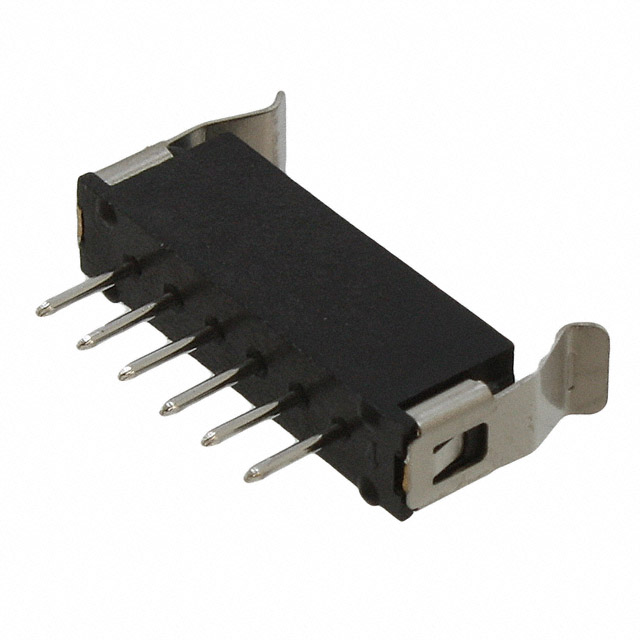

M80-8810642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

MIL Conformance :

No

Voltage - Rated :

800V

Contact Resistance :

25mOhm

Contact Material :

Phosphor Bronze

Contact Finish - Mating :

Gold

Contact Plating :

Gold, Tin

Option :

GENERAL PURPOSE

Contact Gender :

Male

Operating Temperature :

-55°C~125°C

Reference Standard :

UL

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Contact Shape :

Circular

Pitch - Mating :

0.079 2.00mm

Series :

Datamate L-Tek

Style :

Board to Board or Cable

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Terminal Pitch :

2mm

Additional Feature :

LATCHED

Contact Length - Post :

0.118 3.00mm

UL Flammability Code :

94V-0

Number of Rows :

1

Insulation Color :

Black

Durability :

500 Cycles

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number of Positions Loaded :

All

Mounting Type :

Through Hole

Published :

2012

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Packaging :

Tube

JESD-609 Code :

e3

Connector Type :

Header

DIN Conformance :

No

Insertion Force-Max :

2.78 N

Insulation Height :

0.219 5.56mm

Termination :

Solder

PCB Contact Pattern :

RECTANGULAR

Plating Thickness :

30μin

ECCN Code :

EAR99

Factory Lead Time :

6 Weeks

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Package / Case :

SIL

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Current Rating (Amps) :

2.2A

Fastening Type :

Friction Lock

Number of Positions :

6

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

IEC Conformance :

No

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Contact Finish - Post :

Tin

Number Of PCB Rows :

1
