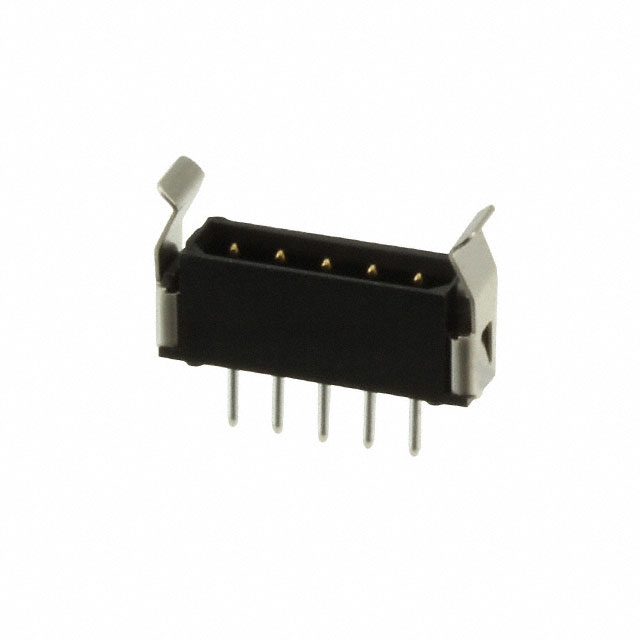

M80-8810542

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Plating Thickness :

30μin

Reliability :

COMMERCIAL

Style :

Board to Board or Cable

Mounting Type :

Through Hole

Voltage - Rated :

800V

Published :

2012

Option :

GENERAL PURPOSE

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

MIL Conformance :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Insulation Color :

Black

Depth :

3.8mm

Contact Material :

Phosphor Bronze

DIN Conformance :

No

Insulation Height :

0.219 5.56mm

Contact Resistance :

25mOhm

Number Of PCB Rows :

1

Insertion Force-Max :

2.78 N

Housing Material :

Polyamide

Current Rating (Amps) :

2.2A

Additional Feature :

LATCHED

RoHS Status :

ROHS3 Compliant

Fastening Type :

Friction Lock

Mating Contact Pitch :

0.079 inch

Orientation :

Straight

Contact Finish - Mating :

Gold

Mount :

Through Hole

Contact Plating :

Gold, Tin

JESD-609 Code :

e3

Pitch - Mating :

0.079 2.00mm

Terminal Pitch :

2mm

PCB Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Radiation Hardening :

No

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Number of Positions :

5

Mixed Contacts :

No

Factory Lead Time :

6 Weeks

Number of Rows :

1

Termination :

Solder

Contact Shape :

Circular

Package / Case :

SIL

Number of Conductors :

ONE

Contact Finish - Post :

Tin

Max Current Rating :

3A

Length :

13.6mm

Max Voltage Rating (AC) :

120V

IEC Conformance :

No

Pbfree Code :

yes

Reference Standard :

UL

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

ECCN Code :

EAR99

Contact Gender :

Male

Contact Length - Post :

0.118 3.00mm

Packaging :

Tube

Series :

Datamate L-Tek
