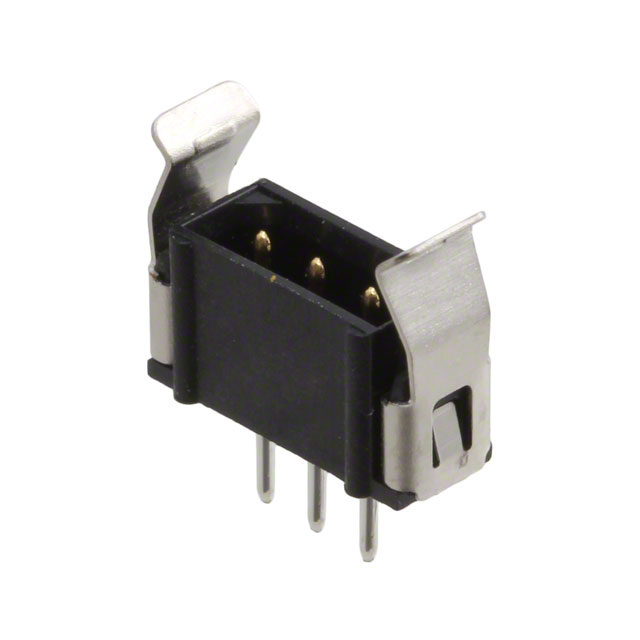

M80-8810342

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Voltage - Rated :

800V

Option :

GENERAL PURPOSE

Additional Feature :

LATCHED

Reference Standard :

UL

Number of Positions Loaded :

All

Terminal Pitch :

2mm

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Current Rating (Amps) :

2.2A

DIN Conformance :

No

Number of Rows :

1

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

JESD-609 Code :

e3

UL Flammability Code :

94V-0

Mounting Type :

Through Hole

Insertion Force-Max :

2.78 N

Fastening Type :

Friction Lock

Contact Gender :

Male

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Termination :

Solder

Length :

10.1mm

Number of Positions :

3

Orientation :

Straight

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

Connector Type :

Header

Durability :

500 Cycles

Contact Finish - Post :

Tin

Mating Contact Pitch :

0.079 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Datamate L-Tek

Package / Case :

SIL

Style :

Board to Board or Cable

Contact Finish Thickness - Post :

118.1μin 3.00μm

Filter Feature :

No

MIL Conformance :

No

Contact Resistance :

25mOhm

RoHS Status :

ROHS3 Compliant

Contact Type :

Male Pin

Factory Lead Time :

6 Weeks

Operating Temperature :

-55°C~125°C

Published :

2006

Number Of PCB Rows :

1

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Shrouding :

Shrouded - 4 Wall

Depth :

3.85mm

Radiation Hardening :

No

Housing Color :

Black

Mount :

Through Hole

Insulation Height :

0.219 5.56mm

Contact Finish - Mating :

Gold

Contact Length - Post :

0.118 3.00mm

Housing Material :

Polyamide

Number of Conductors :

ONE

Packaging :

Tube

ECCN Code :

EAR99

Contact Material :

Phosphor Bronze

Mixed Contacts :

No
