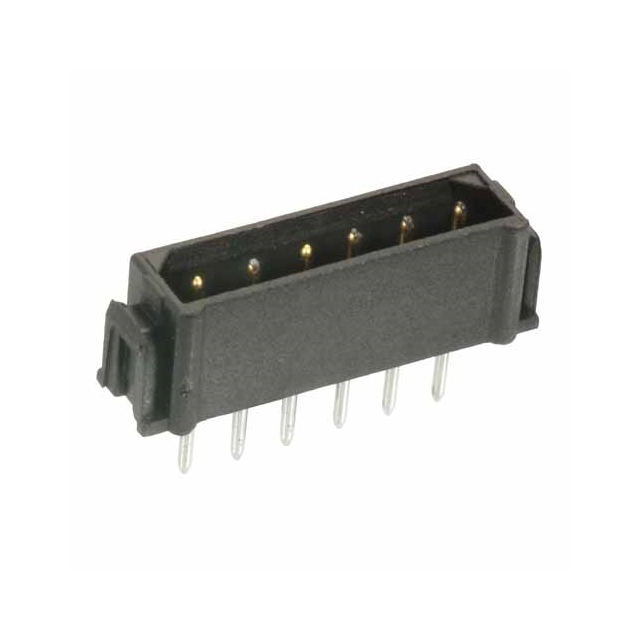

M80-8791705

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

JESD-609 Code :

e4

Number Of PCB Rows :

1

Mounting Option 1 :

LOCKING

Connector Type :

BOARD CONNECTOR

IEC Conformance :

No

Option :

GENERAL PURPOSE

HTS Code :

8536.69.40.40

Insertion Force-Max :

2.78 N

Pbfree Code :

No

PCB Contact Pattern :

RECTANGULAR

Operating Temperature (Max) :

125°C

Body Depth :

0.219 inch

Additional Feature :

POLARIZED, SHROUDED

Mounting Type :

BOARD

Mixed Contacts :

No

Mating Contact Pitch :

0.079 inch

UL Flammability Code :

94V-0

Body Length or Diameter :

1.478 inch

Reach Compliance Code :

Compliant

Mounting Style :

Straight

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

NOT SPECIFIED

Insulation Material :

GLASS FILLED POLYESTER

Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000Ohm

Plating Thickness :

30μin

Contact Gender :

Male

Reference Standard :

UL

Terminal Pitch :

2mm

Contact Finish Termination :

Gold (Au)

Number of Rows :

1

Filter Feature :

No

Body Breadth :

0.157 inch

Number of Conductors :

ONE

Contact Finish - Mating :

NOT SPECIFIED

Operating Temperature (Min) :

-55°C

Termination Type :

Solder

Factory Lead Time :

11 Weeks

Total Number of Contacts :

17

MIL Conformance :

No

Contact Resistance :

20mOhm

Contact Style :

RND PIN-SKT

Withdrawl Force-Min :

.1946 N

Durability :

500 Cycles

Length - Termination :

0.118 inch

Insulator Color :

Black

Body/Shell Style :

Receptacle

ECCN Code :

EAR99
