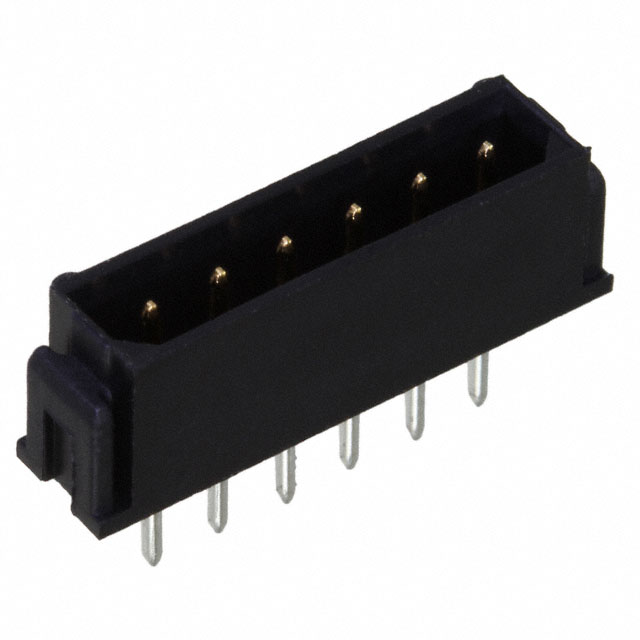

M80-8790622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Style :

Board to Board or Cable

Termination :

Solder

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Terminal Pitch :

2mm

Series :

Datamate L-Tek

Max Current Rating :

3A

Depth :

3.98mm

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

UL Flammability Code :

94V-0

Reach Compliance Code :

not_compliant

JESD-609 Code :

e0

Additional Feature :

POLARIZED, SHROUDED

Number of Rows :

1

Mount :

Through Hole

Mounting Type :

Through Hole

Contact Resistance :

25mOhm

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Operating Temperature :

-55°C~125°C

Durability :

500 Cycles

Current Rating (Amps) :

2.2A

Housing Material :

Polyester

Length :

15.6mm

Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Gold

Fastening Type :

Latch Holder

Number of Positions Loaded :

All

Contact Material :

Phosphor Bronze

Filter Feature :

No

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Package / Case :

SIL

Contact Finish Thickness - Post :

118.1μin 3.00μm

Reference Standard :

UL

DIN Conformance :

No

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

11 Weeks

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Insulation Color :

Black

Contact Shape :

Circular

Pbfree Code :

No

Contact Length - Post :

0.118 3.00mm

Insulation Height :

0.219 5.56mm

Contact Finish - Post :

Tin-Lead

Mating Contact Pitch :

0.079 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pitch - Mating :

0.079 2.00mm

MIL Conformance :

No

Published :

2012

Number of Conductors :

ONE

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Contact Gender :

Male

Packaging :

Tube

Connector Type :

Header

ECCN Code :

EAR99

Contact Plating :

Gold, Tin

Max Voltage Rating (AC) :

800V

Insertion Force-Max :

2.78 N

Number of Positions :

6
