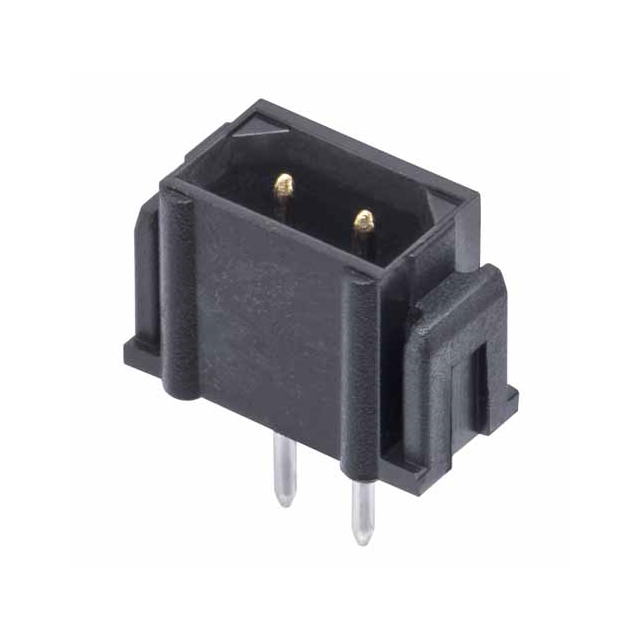

M80-8790222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2002

Material Flammability Rating :

UL94 V-0

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Filter Feature :

No

Orientation :

Straight

Pbfree Code :

No

Contact Gender :

Male

JESD-609 Code :

e0

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

1

Mount :

Through Hole

IEC Conformance :

No

Pitch - Mating :

0.079 2.00mm

Current Rating (Amps) :

2.2A

Termination :

Solder

Factory Lead Time :

11 Weeks

Insulation Height :

0.219 5.56mm

Contact Type :

Male Pin

Contact Shape :

Circular

Package / Case :

SIL

Number of Rows :

1

Reference Standard :

UL

Number of Positions :

2

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin-Lead

Durability :

500 Cycles

Max Voltage Rating (AC) :

800V

DIN Conformance :

No

Depth :

3.98mm

Series :

Datamate L-Tek

Connector Type :

Header

Style :

Board to Board or Cable

Contact Resistance :

25mOhm

Contact Finish - Mating :

Gold

Max Current Rating :

3A

Mixed Contacts :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Additional Feature :

POLARIZED, SHROUDED

MIL Conformance :

No

Contact Material :

Phosphor Bronze

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

RoHS Status :

Non-RoHS Compliant

ECCN Code :

EAR99

Housing Material :

Polyester

Option :

GENERAL PURPOSE

Insulation Color :

Black

Mounting Type :

Through Hole

HTS Code :

8536.69.40.40

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mating Contact Pitch :

0.079 inch

Plating Thickness :

30μin

Operating Temperature :

-55°C~125°C

Fastening Type :

Latch Holder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Post :

0.118 3.00mm

Reliability :

COMMERCIAL

Length :

7.6mm

Number of Conductors :

ONE

Packaging :

Tube
