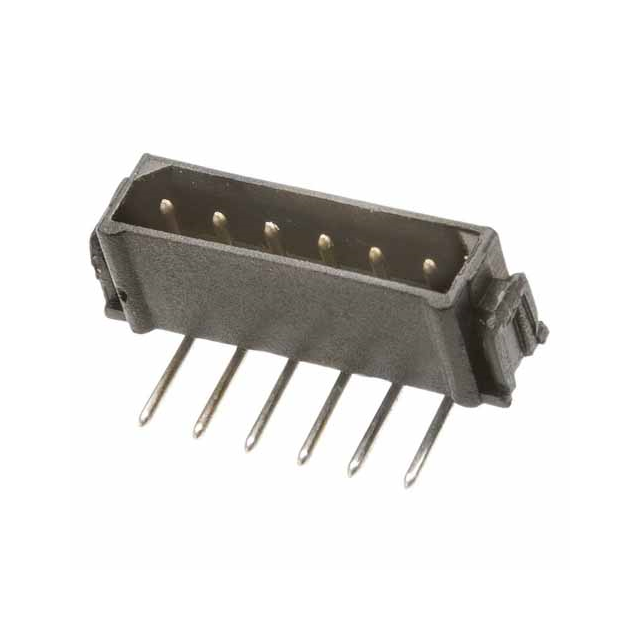

M80-8781705

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Max Operating Temperature :

85 °C

Termination :

Solder

Packaging :

Tape and Reel

Contact Material :

Phosphor Bronze

Package :

Tube

Insulation Color :

Black

Contact Finish Thickness - Post :

29.5µin (0.75µm)

Pitch - Mating :

0.079 (2.00mm)

Contact Length - Mating :

-

Contact Finish - Post :

Gold

Min Operating Temperature :

-40 °C

Contact Shape :

Circular

Current Rating (Amps) :

2.2A

Min Dual Supply Voltage :

1.5 V

Max Supply Voltage :

18 V

Min Supply Voltage :

3 V

Features :

Strain Relief Clips

Radiation Hardening :

No

Fastening Type :

Latch Holder

Row Spacing - Mating :

-

Number of Inputs :

1

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Channels :

1

Number of Positions :

17

Number of Pins :

5

Contact Finish Thickness - Mating :

29.5µin (0.75µm)

Shrouding :

Shrouded - 4 Wall

Voltage Rating :

120V

Power Dissipation :

200 mW

Applications :

-

Contact Finish - Mating :

Gold

Mated Stacking Heights :

-

Contact Type :

Male Pin

Ingress Protection :

-

Number of Rows :

1

Mount :

Surface Mount

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.156 (3.96mm)

Contact Length - Post :

0.118 (3.00mm)

Operating Temperature :

-55°C ~ 125°C

Style :

Board to Board or Cable

Mounting Type :

Through Hole, Right Angle

Number of Outputs :

1

Number of Positions Loaded :

All

RoHS :

Compliant

Base Product Number :

M80-878

Max Dual Supply Voltage :

9 V

Overall Contact Length :

-

Series :

Datamate L-Tek

Product Status :

Active

Connector Type :

Header
