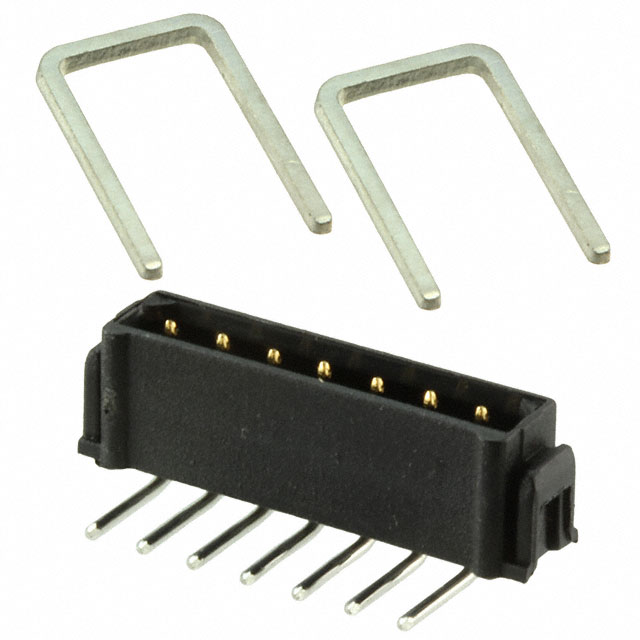

M80-8780722

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Orientation :

RIGHT ANGLE

Connector Type :

Header

Termination :

Solder

HTS Code :

8536.69.40.40

Contact Plating :

Gold, Tin

Reach Compliance Code :

not_compliant

Number of Rows :

1

Max Voltage Rating (AC) :

120V

Plating Thickness :

29μin

Pitch - Mating :

0.079 2.00mm

Operating Temperature :

-55°C~125°C

Depth :

6.13mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2009

Pbfree Code :

No

JESD-609 Code :

e0

Number of Positions Loaded :

All

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Conductors :

ONE

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Insulation Color :

Black

Terminal Pitch :

2mm

Insulation Height :

0.156 3.96mm

Reference Standard :

UL

Filter Feature :

No

Series :

Datamate L-Tek

Number Of PCB Rows :

1

Mounting Type :

Through Hole, Right Angle

Housing Material :

Polyester

Durability :

500 Cycles

Contact Length - Post :

0.118 3.00mm

Fastening Type :

Latch Holder

Max Current Rating :

3A

Reliability :

COMMERCIAL

Contact Shape :

Circular

Contact Finish Thickness - Post :

118.1μin 3.00μm

Feature :

Strain Relief Clips

Current Rating (Amps) :

2.2A

Mount :

Through Hole

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Option :

GENERAL PURPOSE

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

DIN Conformance :

No

Style :

Board to Board or Cable

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin-Lead

Contact Type :

Male Pin

ECCN Code :

EAR99

RoHS Status :

Non-RoHS Compliant

MIL Conformance :

No

Factory Lead Time :

13 Weeks

Length :

17.6mm

Contact Gender :

Male

Package / Case :

SIL

Number of Positions :

7

Material Flammability Rating :

UL94 V-0

Contact Resistance :

25mOhm

Mixed Contacts :

No

IEC Conformance :

No
