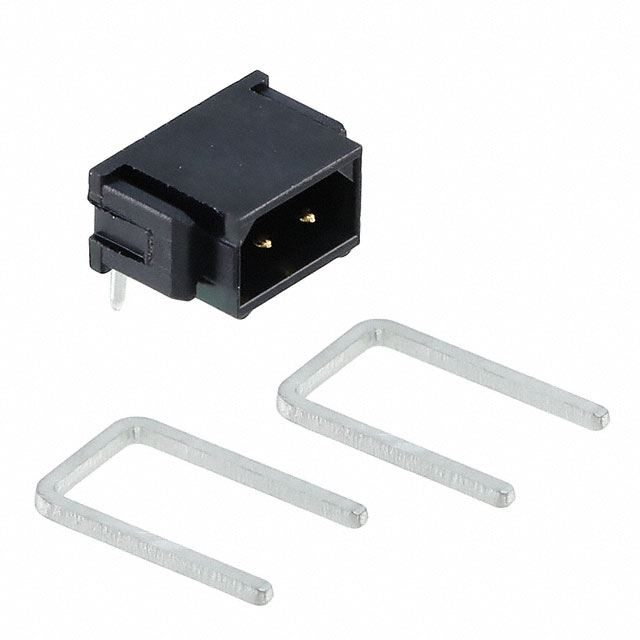

M80-8780222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Pbfree Code :

No

Number of Positions :

2

Contact Gender :

Male

Feature :

Strain Relief Clips

Number Of PCB Rows :

1

IEC Conformance :

No

DIN Conformance :

No

Option :

GENERAL PURPOSE

Series :

Datamate L-Tek

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Housing Material :

Polyester

Reach Compliance Code :

not_compliant

Termination :

Solder

Published :

2009

Insulation Color :

Black

Connector Type :

Header

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Resistance :

25mOhm

HTS Code :

8536.69.40.40

Contact Finish - Mating :

Gold

Shrouding :

Shrouded - 4 Wall

Filter Feature :

No

Depth :

6.13mm

Contact Finish - Post :

Tin-Lead

Operating Temperature :

-55°C~125°C

Reference Standard :

UL

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

11 Weeks

MIL Conformance :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mixed Contacts :

No

Contact Finish Thickness - Post :

118.1μin 3.00μm

Packaging :

Tube

Package / Case :

SIL

Contact Shape :

Circular

Mount :

Through Hole

Fastening Type :

Latch Holder

Length :

7.6mm

Insulation Height :

0.156 3.96mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Pitch - Mating :

0.079 2.00mm

Max Voltage Rating (AC) :

120V

Number of Rows :

1

Durability :

500 Cycles

Mating Contact Pitch :

0.079 inch

Number of Conductors :

ONE

Contact Length - Post :

0.118 3.00mm

Mounting Type :

Through Hole, Right Angle

Current Rating (Amps) :

2.2A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Max Current Rating :

3A

Contact Material :

Phosphor Bronze

Style :

Board to Board or Cable

Orientation :

RIGHT ANGLE

Contact Type :

Male Pin

Number of Positions Loaded :

All
