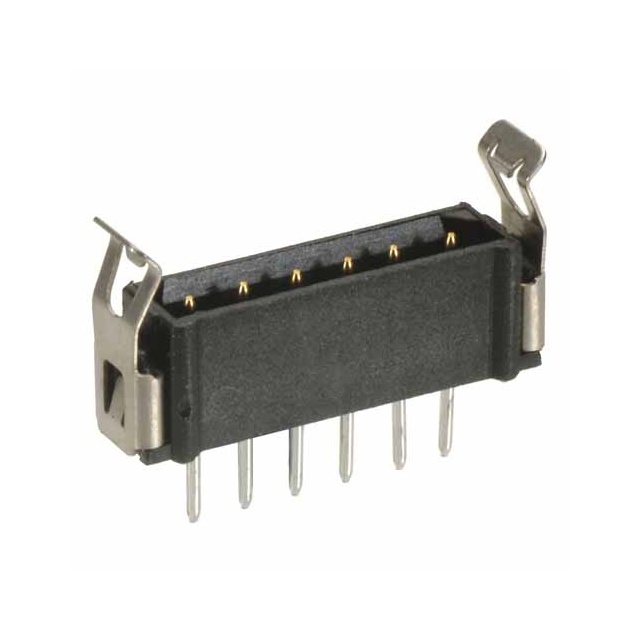

M80-8772222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Operating Temperature :

-55°C~125°C

Style :

Board to Board or Cable

Packaging :

Tube

Additional Feature :

LATCHED

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating :

UL94 V-0

Insertion Force-Max :

2.78 N

RoHS Status :

Non-RoHS Compliant

Mounting Type :

Through Hole

Contact Plating :

Gold, Tin

Insulation Height :

0.219 5.56mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Current Rating (Amps) :

2.2A

Terminal Pitch :

2mm

HTS Code :

8536.69.40.40

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

1

Contact Material :

Phosphor Bronze

Insulation Material :

Polyester, Glass Filled

Reference Standard :

UL

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

1

Filter Feature :

No

Contact Finish - Post :

Tin-Lead

Number of Positions :

22

Series :

Datamate L-Tek

Package / Case :

SIL

Termination :

Solder

Contact Type :

Male Pin

Connector Type :

Header

Number of Conductors :

ONE

Reliability :

COMMERCIAL

MIL Conformance :

No

Voltage - Rated :

800V

Reach Compliance Code :

not_compliant

Mating Contact Pitch :

0.079 inch

Contact Resistance :

20mOhm

Pitch - Mating :

0.079 2.00mm

DIN Conformance :

No

Fastening Type :

Latch Lock

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Published :

2012

Contact Length - Post :

0.118 3.00mm

ECCN Code :

EAR99

Contact Shape :

Circular

Contact Gender :

Male

JESD-609 Code :

e0

UL Flammability Code :

94V-0

Insulation Color :

Black

Contact Finish - Mating :

Gold

Durability :

500 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number of Positions Loaded :

All

Pbfree Code :

No

Plating Thickness :

29μin

Option :

GENERAL PURPOSE

IEC Conformance :

No

Mount :

Through Hole
