M80-8771722
Or copy the link below:
- Mfr.Part #
- M80-8771722
- Manufacturer
- Harwin
- Package / Case
- SIL
- Datasheet
- Download
- Description
- CONN HEADER VERT 17POS 2MM
- Stock
- 698
- In Stock ：
- 698
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin-Lead
- Color :
- Black
- Voltage - Rated :
- 800V
- Fastening Type :
- Latch Lock
- Contact Finish - Mating :
- Gold
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- Non-RoHS Compliant
- Insulation Color :
- Black
- Insulation Height :
- 0.219 5.56mm
- Factory Lead Time :
- 11 Weeks
- Published :
- 2012
- Termination :
- Solder
- Number of Rows :
- 1
- Series :
- Datamate L-Tek
- Contact Gender :
- Male
- Min Operating Temperature :
- -55°C
- Pitch :
- 2mm
- Max Current Rating :
- 3A
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Length :
- 38mm
- Housing Color :
- Black
- Max Voltage Rating (AC) :
- 800V
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 2.2A
- Max Operating Temperature :
- 125°C
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Housing Material :
- Polyester
- Depth :
- 3.98mm
- Style :
- Board to Board or Cable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Mount :
- Through Hole
- Stack Height (Mating) :
- 7.23mm 10.2mm 13.46mm
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Operating Temperature :
- -55°C~125°C
- Packaging :
- Tube
- Contact Length - Post :
- 0.118 3.00mm
- Contact Shape :
- Circular
- Package / Case :
- SIL
- Contact Resistance :
- 25mOhm
- Insulation Material :
- Polyester, Glass Filled
- Number of Positions :
- 17
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.079 2.00mm
- Contact Plating :
- Gold, Tin
- Datasheets
- M80-8771722
M80-8771722 Documents

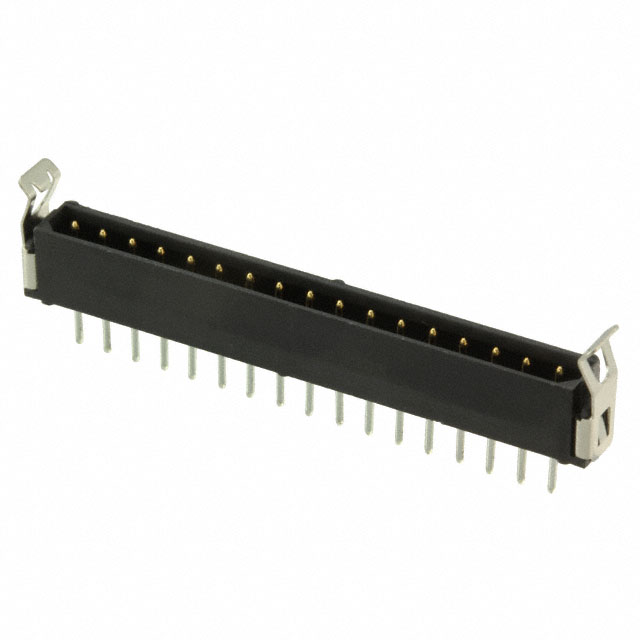

Datamate L-Tek Series 1-Row Header Solder Phosphor Bronze Tube Through Hole Gold Polyester, Glass Filled 17-Position Board to Board or Cable 0.219 5.56mm Height
M80-8771722 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Datamate L-Tek Series.Use it when the temperature is below 125°C.Temperatures below -55°C are required for this device to operate.There is a device enclosed in the packaging with the SIL.It is mounted by Through Hole.It operates at an operating temperature of -55°C~125°C.
