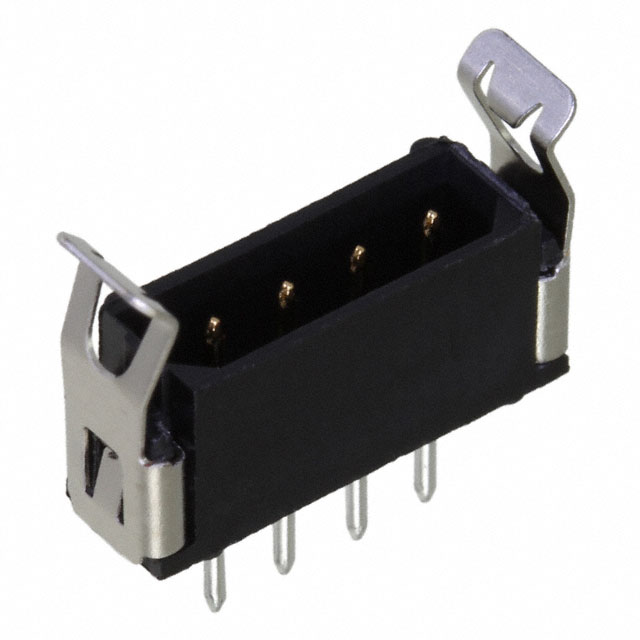

M80-8770422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Housing Color :

Black

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

800V

Max Current Rating :

3A

Number of Rows :

1

Operating Temperature :

-55°C~125°C

Durability :

500 Cycles

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

No

Packaging :

Tube

Contact Material :

Phosphor Bronze

Pitch - Mating :

0.079 2.00mm

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Series :

Datamate L-Tek

Mixed Contacts :

No

Insulation Material :

Polyester, Glass Filled

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Conductors :

ONE

Orientation :

Straight

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

SIL

Contact Shape :

Circular

Connector Type :

Header

Insulation Height :

0.219 5.56mm

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Insertion Force-Max :

2.78 N

Factory Lead Time :

11 Weeks

MIL Conformance :

No

Number of Positions Loaded :

All

Termination :

Solder

Mating Contact Pitch :

0.079 inch

Mount :

Through Hole

Number of Positions :

4

Additional Feature :

LATCHED

Plating Thickness :

29μin

Contact Length - Post :

0.118 3.00mm

Published :

2012

ECCN Code :

EAR99

Current Rating (Amps) :

2.2A

Length :

12mm

Current Rating :

3A

Style :

Board to Board or Cable

IEC Conformance :

No

Filter Feature :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

DIN Conformance :

No

Depth :

3.98mm

Number Of PCB Rows :

1

RoHS Status :

Non-RoHS Compliant

Contact Gender :

Male

Contact Finish - Mating :

Gold

Mounting Type :

Through Hole

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Fastening Type :

Latch Lock

Housing Material :

Polyester

JESD-609 Code :

e0

Reference Standard :

UL

Contact Finish - Post :

Tin-Lead

Contact Resistance :

25mOhm

Radiation Hardening :

No

Reliability :

COMMERCIAL
