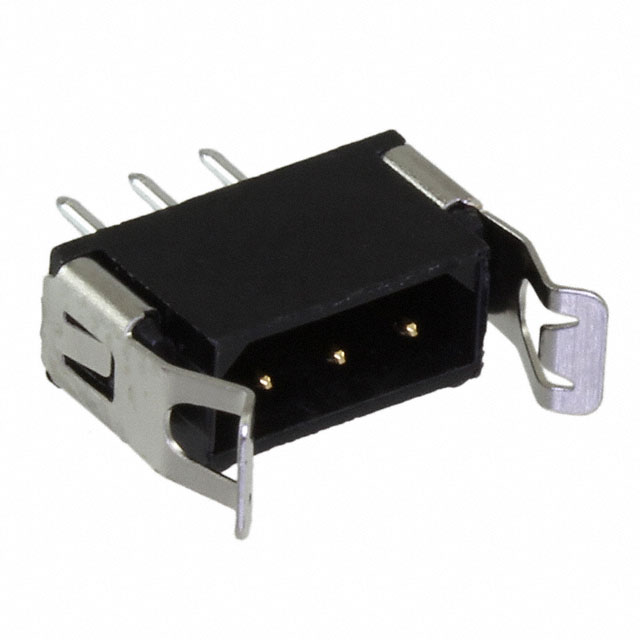

M80-8770322

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mating Contact Pitch :

0.079 inch

Packaging :

Tube

Mount :

Through Hole

Insulation Material :

Polyester, Glass Filled

Connector Type :

Header

Number of Rows :

1

Series :

Datamate L-Tek

Operating Temperature :

-55°C~125°C

Contact Shape :

Circular

Option :

GENERAL PURPOSE

Contact Finish - Mating :

Gold

Style :

Board to Board or Cable

Fastening Type :

Latch Lock

Insertion Force-Max :

2.78 N

Mounting Type :

Through Hole

Termination :

Solder

Contact Material :

Phosphor Bronze

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Insulation Height :

0.219 5.56mm

DIN Conformance :

No

Additional Feature :

LATCHED

Reach Compliance Code :

not_compliant

Factory Lead Time :

11 Weeks

Contact Type :

Male Pin

Orientation :

Straight

Housing Color :

Black

Number Of PCB Rows :

1

Max Current Rating :

3A

Contact Finish Thickness - Post :

118.1μin 3.00μm

Published :

2009

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.079 2.00mm

IEC Conformance :

No

Pbfree Code :

No

ECCN Code :

EAR99

Terminal Pitch :

2mm

Length :

10mm

Current Rating (Amps) :

2.2A

Number of Positions :

3

Mixed Contacts :

No

Filter Feature :

No

Durability :

500 Cycles

RoHS Status :

Non-RoHS Compliant

Contact Gender :

Male

UL Flammability Code :

94V-0

Number of Positions Loaded :

All

Max Voltage Rating (AC) :

800V

Reliability :

COMMERCIAL

REACH SVHC :

No SVHC

Contact Finish - Post :

Tin-Lead

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Contact Length - Post :

0.118 3.00mm

Plating Thickness :

29μin

Package / Case :

SIL

JESD-609 Code :

e0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyester

Current Rating :

3A

Contact Finish Thickness - Mating :

29.5μin 0.75μm

MIL Conformance :

No

Shrouding :

Shrouded - 4 Wall

Number of Conductors :

ONE

Contact Resistance :

25mOhm

Depth :

3.98mm
