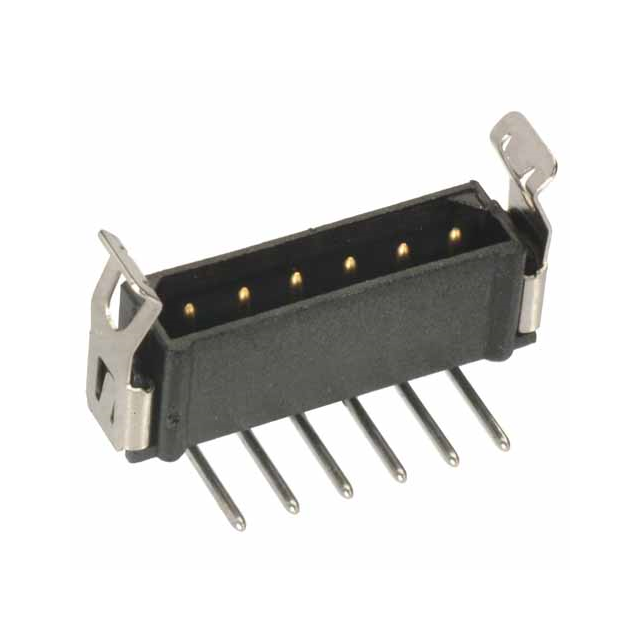

M80-8762205

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Color :

Black

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

12.0µin (0.30µm)

Contact Finish Thickness - Mating :

29.5µin (0.75µm)

Shrouding :

Shrouded - 4 Wall

Mated Stacking Heights :

-

Operating Temperature :

-55°C ~ 125°C

Voltage Rating :

120V

Connector Type :

Header

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

2.2A

Contact Finish - Post :

Tin-Lead

Contact Length - Mating :

-

Row Spacing - Mating :

-

Mounting Type :

Through Hole, Right Angle

Series :

Datamate L-Tek

Product Status :

Active

Fastening Type :

Latch Lock

Contact Shape :

Circular

Insulation Height :

0.156 (3.96mm)

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

0.118 (3.00mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Pitch - Mating :

0.079 (2.00mm)

Contact Type :

Male Pin

Applications :

-

Ingress Protection :

-

Number of Positions Loaded :

All

Number of Rows :

1

Overall Contact Length :

-

Termination :

Solder

Style :

Board to Board or Cable

Base Product Number :

M80-876

Number of Positions :

22

Features :

Strain Relief Clips

Package :

Tube
