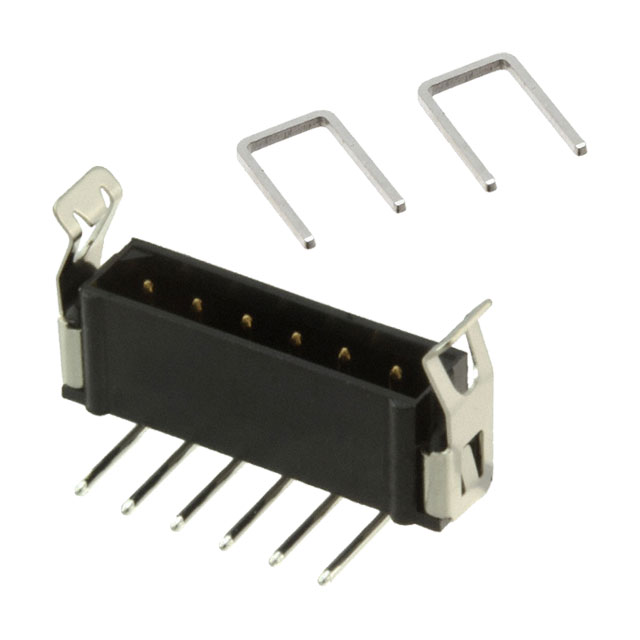

M80-8760622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Feature :

Strain Relief Clips

Current Rating :

3A

Mounting Type :

Through Hole, Right Angle

Orientation :

RIGHT ANGLE

Housing Material :

Polyester

Max Voltage Rating (AC) :

120V

Terminal Pitch :

2mm

MIL Conformance :

No

Contact Finish Thickness - Post :

118.1μin 3.00μm

Max Current Rating :

3A

Durability :

500 Cycles

Factory Lead Time :

11 Weeks

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

UL Flammability Code :

94V-0

Pitch - Mating :

0.079 2.00mm

Option :

GENERAL PURPOSE

Current Rating (Amps) :

2.2A

Insulation Height :

0.156 3.96mm

Fastening Type :

Latch Lock

Additional Feature :

LATCHED

JESD-609 Code :

e0

Contact Resistance :

25mOhm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

Number Of PCB Rows :

1

Housing Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Number of Conductors :

ONE

Termination :

Solder

Plating Thickness :

30μin

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Packaging :

Tube

Style :

Board to Board or Cable

Reference Standard :

UL

Reach Compliance Code :

not_compliant

Pbfree Code :

No

Filter Feature :

No

Contact Finish - Mating :

Gold

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Connector Type :

Header

RoHS Status :

Non-RoHS Compliant

Contact Shape :

Circular

ECCN Code :

EAR99

Mating Contact Pitch :

0.079 inch

Published :

2008

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Package / Case :

SIL

Number of Rows :

1

Number of Positions :

6

Contact Finish - Post :

Tin-Lead

Length :

16mm

Series :

Datamate L-Tek

Contact Material :

Phosphor Bronze

Contact Length - Post :

0.118 3.00mm

Contact Gender :

Male

Depth :

3.98mm
