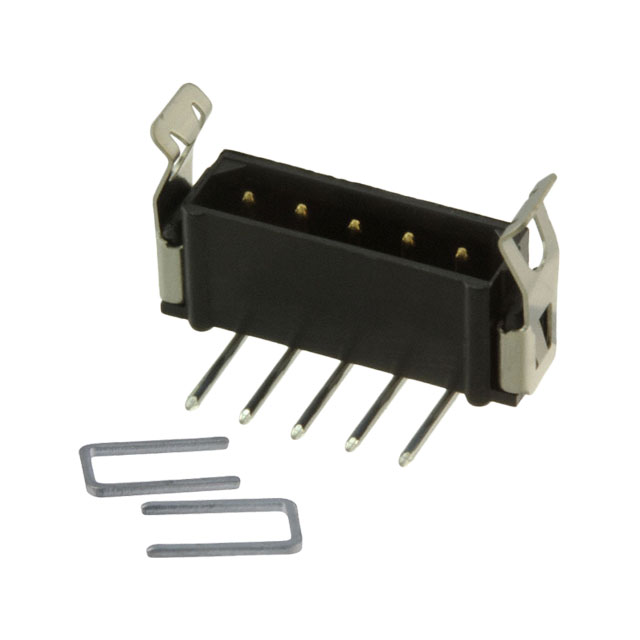

M80-8760522

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Housing Material :

Polyester

Polarization Key :

POLARIZED HOUSING

Operating Temperature :

-55°C~125°C

Mixed Contacts :

No

Mounting Type :

Through Hole, Right Angle

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

Gold

Factory Lead Time :

11 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Terminal Pitch :

2mm

Max Current Rating :

3A

Option :

GENERAL PURPOSE

Filter Feature :

No

Pitch - Mating :

0.079 2.00mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Radiation Hardening :

No

Contact Type :

Male Pin

Housing Color :

Black

ECCN Code :

EAR99

Contact Material :

Phosphor Bronze

RoHS Status :

Non-RoHS Compliant

Additional Feature :

LATCHED

Series :

Datamate L-Tek

JESD-609 Code :

e0

Termination :

Solder

Number of Rows :

1

Style :

Board to Board or Cable

Orientation :

RIGHT ANGLE

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Mating Contact Pitch :

0.079 inch

Mount :

Through Hole

Number Of PCB Rows :

1

Contact Resistance :

25mOhm

Contact Length - Post :

0.118 3.00mm

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock

Insulation Height :

0.156 3.96mm

Current Rating (Amps) :

2.2A

DIN Conformance :

No

Plating Thickness :

30μin

Feature :

Strain Relief Clips

IEC Conformance :

No

Packaging :

Tube

Contact Finish - Post :

Tin-Lead

Pbfree Code :

No

Current Rating :

3A

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Depth :

3.98mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Length :

14mm

Max Voltage Rating (AC) :

120V

Contact Shape :

Circular

Contact Finish Thickness - Post :

118.1μin 3.00μm

MIL Conformance :

No

Package / Case :

SIL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reference Standard :

UL

UL Flammability Code :

94V-0

Number of Positions :

5

Published :

2008
