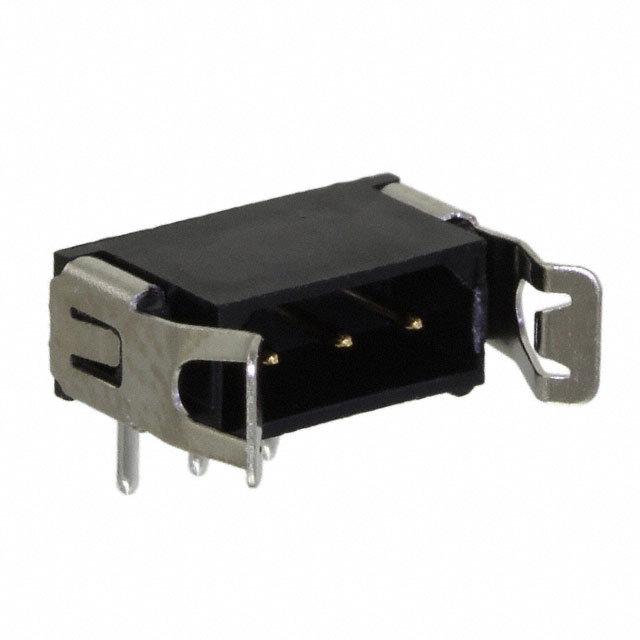

M80-8760322

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Fastening Type :

Latch Lock

Polarization Key :

POLARIZED HOUSING

Series :

Datamate L-Tek

Orientation :

RIGHT ANGLE

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

ECCN Code :

EAR99

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Code :

e0

Feature :

Strain Relief Clips

Contact Finish - Mating :

Gold

Contact Shape :

Circular

Termination :

Solder

REACH SVHC :

No SVHC

Operating Temperature :

-55°C~125°C

Current Rating (Amps) :

2.2A

MIL Conformance :

No

Housing Color :

Black

DIN Conformance :

No

IEC Conformance :

No

Pbfree Code :

No

Depth :

3.98mm

Contact Material :

Phosphor Bronze

Reliability :

COMMERCIAL

Mounting Type :

Through Hole, Right Angle

Number Of PCB Rows :

1

Contact Length - Post :

0.118 3.00mm

Number of Conductors :

ONE

Max Voltage Rating (AC) :

120V

Reach Compliance Code :

not_compliant

Number of Positions :

3

Published :

2006

Number of Positions Loaded :

All

Insulation Height :

0.156 3.96mm

Durability :

500 Cycles

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Current Rating :

3A

Material Flammability Rating :

UL94 V-0

RoHS Status :

Non-RoHS Compliant

Max Current Rating :

3A

UL Flammability Code :

94V-0

Package / Case :

SIL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

Contact Resistance :

25mOhm

Style :

Board to Board or Cable

Length :

10mm

Contact Finish - Post :

Tin-Lead

Contact Gender :

Male

Connector Type :

Header

Mount :

Through Hole

Housing Material :

Polyester

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Option :

GENERAL PURPOSE

Factory Lead Time :

11 Weeks

Mating Contact Pitch :

0.079 inch

Terminal Pitch :

2mm

Additional Feature :

LATCHED

Pitch - Mating :

0.079 2.00mm

Reference Standard :

UL

Number of Rows :

1
