M80-8693422
Or copy the link below:
- Mfr.Part #
- M80-8693422
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 34POS 2MM
- Stock
- 1,363
- In Stock ：
- 1,363
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Durability :
- 500 Cycles
- Length - Termination :
- 0.118 inch
- Insulation Material :
- Polyester, Glass Filled
- Current Rating (Amps) :
- 2.2A
- Series :
- Datamate L-Tek
- Plating Thickness :
- 30μin
- Fastening Type :
- Latch Holder
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Mating Contact Pitch :
- 0.079 inch
- Insulation Color :
- Black
- Style :
- Board to Board or Cable
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Number of Rows :
- 2
- Additional Feature :
- POLARIZED, SHROUDED
- Reach Compliance Code :
- not_compliant
- Number Of PCB Rows :
- 2
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Packaging :
- Tube
- Insulation Resistance :
- 100000000Ohm
- Body Length or Diameter :
- 1.478 inch
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin-Lead
- HTS Code :
- 8536.69.40.40
- RoHS Status :
- Non-RoHS Compliant
- Number of Conductors :
- ONE
- ECCN Code :
- EAR99
- Voltage - Rated :
- 800V
- Current Rating :
- 3A
- Contact Length - Post :
- 0.118 3.00mm
- Connector Type :
- PLUG
- Polarization Key :
- POLARIZED HOUSING
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~125°C
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Insulation Height :
- 0.219 5.56mm
- JESD-609 Code :
- e0
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Pbfree Code :
- No
- Published :
- 2013
- Contact Gender :
- Male
- Reliability :
- COMMERCIAL
- Option :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.079 2.00mm
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Contact Shape :
- Circular
- Number of Positions :
- 34
- DIN Conformance :
- No
- Filter Feature :
- No
- Termination :
- Solder
- Housing Material :
- Polyester
- MIL Conformance :
- No
- Contact Finish - Mating :
- Gold
- Stack Height (Mating) :
- 7.23mm 7.85mm 10.2mm 13.51mm
- Factory Lead Time :
- 11 Weeks
- Datasheets
- M80-8693422

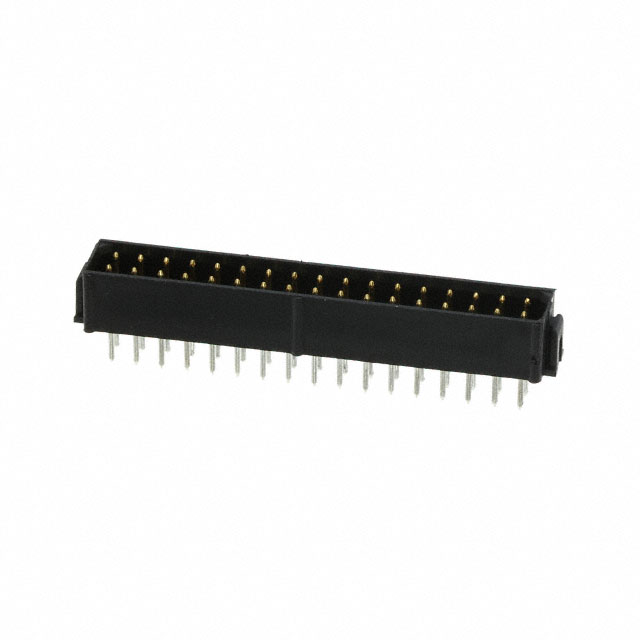

Datamate L-Tek Series 2-Row Plug Solder Phosphor Bronze Tube Through Hole Gold Polyester, Glass Filled 34-Position Board to Board or Cable 0.219 5.56mm Height
M80-8693422 Overview
A Plug package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Datamate L-Tek Series of products.Additionally, there are other features, such as POLARIZED, SHROUDED.Through Hole mounts the part.There is no operating temperature for the device.
M80-8693422 Features
Datamate L-Tek series
M80-8693422 Applications
There are a lot of Harwin Inc.
M80-8693422 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
