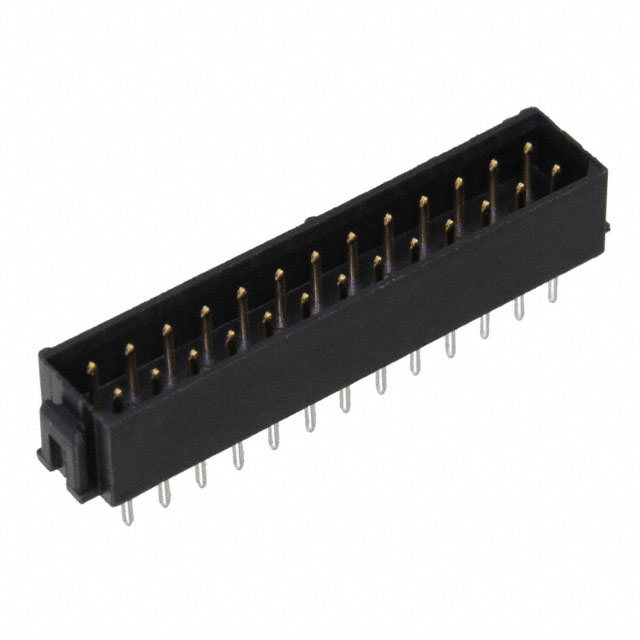

M80-8692622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2013

Max Current Rating :

3A

Series :

Datamate L-Tek

IEC Conformance :

No

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Current Rating :

3A

Number of Positions Loaded :

All

Filter Feature :

No

Number of Positions :

26

Contact Finish - Post :

Tin-Lead

MIL Conformance :

No

Contact Length - Post :

0.118 3.00mm

Termination :

Solder

Voltage - Rated :

800V

JESD-609 Code :

e0

Contact Resistance :

25mOhm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Fastening Type :

Latch Holder

Insulation Height :

0.219 5.56mm

Insulation Color :

Black

UL Flammability Code :

94V-0

Insulation Resistance :

100000000Ohm

Row Spacing - Mating :

0.079 (2.00mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 4 Wall

Connector Type :

PLUG

Reference Standard :

UL

Option :

GENERAL PURPOSE

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Contact Gender :

Male

Contact Shape :

Circular

Number Of PCB Rows :

2

Housing Material :

Polyester

Reliability :

COMMERCIAL

Contact Finish Thickness - Post :

118.1μin 3.00μm

DIN Conformance :

No

Mount :

Through Hole

Packaging :

Tube

Contact Type :

Male Pin

Max Voltage Rating (AC) :

120V

HTS Code :

8536.69.40.40

Length :

29.6mm

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Depth :

5.98mm

Plating Thickness :

30μin

Insulation Material :

Polyester, Glass Filled

Pbfree Code :

No

Contact Material :

Phosphor Bronze

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

POLARIZED, SHROUDED

Pitch - Mating :

0.079 2.00mm

Mounting Type :

Through Hole

Durability :

500 Cycles

Polarization Key :

POLARIZED HOUSING

Style :

Board to Board or Cable

Number of Rows :

2

Factory Lead Time :

11 Weeks

Orientation :

Straight

RoHS Status :

Non-RoHS Compliant

Mixed Contacts :

No

Reach Compliance Code :

not_compliant

Mating Contact Pitch :

0.079 inch

Current Rating (Amps) :

2.2A

Material Flammability Rating :

UL94 V-0
