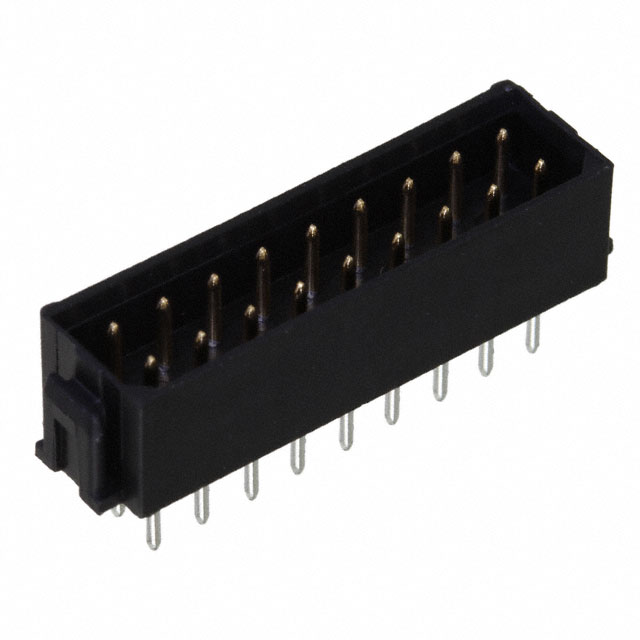

M80-8691822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Positions :

18

Published :

2001

DIN Conformance :

No

Termination :

Solder

MIL Conformance :

No

Packaging :

Tube

Housing Material :

Polyester

Radiation Hardening :

No

Mounting Type :

Through Hole

Current Rating (Amps) :

2.2A

Connector Type :

PLUG

Number of Conductors :

ONE

UL Flammability Code :

94V-0

Fastening Type :

Latch Holder

Orientation :

Straight

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.118 3.00mm

Insulation Resistance :

100000000Ohm

Number of Rows :

2

Contact Finish - Mating :

Gold

Contact Gender :

Male

Insulation Color :

Black

Mating Contact Pitch :

0.079 inch

Series :

Datamate L-Tek

Contact Resistance :

25mOhm

ECCN Code :

EAR99

Mixed Contacts :

No

Insulation Material :

Polyester, Glass Filled

IEC Conformance :

No

Max Current Rating :

3A

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.219 5.56mm

Row Spacing - Mating :

0.079 (2.00mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Phosphor Bronze

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Current Rating :

3A

Contact Finish - Post :

Tin-Lead

Number of Positions Loaded :

All

Voltage - Rated :

800V

Durability :

500 Cycles

Mount :

Through Hole

Length :

21.6mm

Pitch - Mating :

0.079 2.00mm

Option :

GENERAL PURPOSE

Contact Type :

Male Pin

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Depth :

5.98mm

Reliability :

COMMERCIAL

JESD-609 Code :

e0

Factory Lead Time :

11 Weeks

Plating Thickness :

30μin

Shrouding :

Shrouded - 4 Wall

Style :

Board to Board or Cable

Number Of PCB Rows :

2

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

RoHS Status :

Non-RoHS Compliant

Additional Feature :

POLARIZED, SHROUDED

Contact Finish Thickness - Post :

118.1μin 3.00μm

Polarization Key :

POLARIZED HOUSING

Max Voltage Rating (AC) :

120V

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pbfree Code :

No

Contact Shape :

Circular

Reference Standard :

UL
