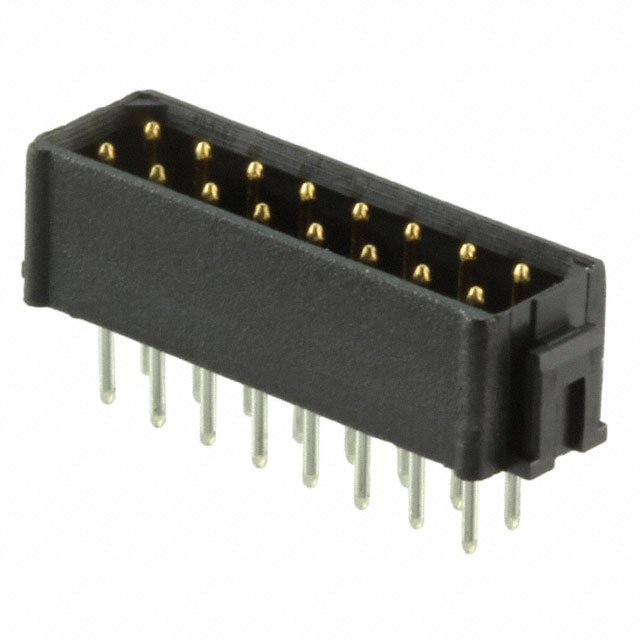

M80-8691622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Filter Feature :

No

DIN Conformance :

No

Insulation Height :

0.219 5.56mm

RoHS Status :

Non-RoHS Compliant

Current Rating (Amps) :

2.2A

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Number of Rows :

2

Contact Shape :

Circular

Shrouding :

Shrouded - 4 Wall

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Black

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder

Pitch - Mating :

0.079 2.00mm

Contact Finish - Post :

Tin-Lead

Operating Temperature :

-55°C~125°C

Connector Type :

PLUG

Mount :

Through Hole

IEC Conformance :

No

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Published :

2013

Additional Feature :

POLARIZED, SHROUDED

Reference Standard :

UL

Length - Termination :

0.118 inch

Housing Material :

Polyester

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

800V

Row Spacing - Mating :

0.079 (2.00mm)

Packaging :

Tube

Contact Type :

Male Pin

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Pbfree Code :

No

ECCN Code :

EAR99

Current Rating :

3A

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole

Fastening Type :

Latch Holder

Contact Gender :

Male

Body Length or Diameter :

0.77 inch

Insulation Resistance :

100000000Ohm

Plating Thickness :

30μin

Contact Length - Post :

0.118 3.00mm

Durability :

500 Cycles

Style :

Board to Board or Cable

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.079 inch

MIL Conformance :

No

Number of Conductors :

ONE

JESD-609 Code :

e0

Series :

Datamate L-Tek

Contact Finish Thickness - Post :

118.1μin 3.00μm

Factory Lead Time :

11 Weeks

Number of Positions :

16

Contact Finish - Mating :

Gold

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Material :

Polyester, Glass Filled

HTS Code :

8536.69.40.40
