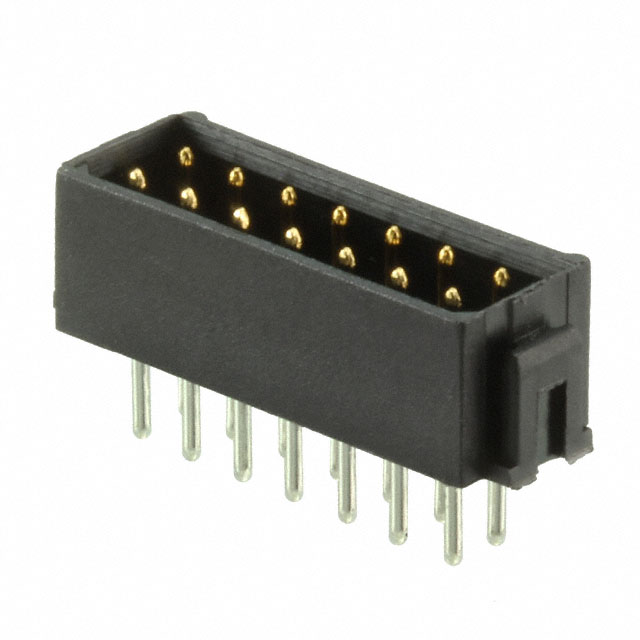

M80-8691422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Height :

0.219 5.56mm

Filter Feature :

No

Packaging :

Tube

Termination :

Solder

Shrouding :

Shrouded - 4 Wall

Factory Lead Time :

11 Weeks

Max Current Rating :

3A

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Insulation Material :

Polyester, Glass Filled

Length :

17.6mm

MIL Conformance :

No

Mounting Type :

Through Hole

Number of Conductors :

ONE

Mixed Contacts :

No

Row Spacing - Mating :

0.079 (2.00mm)

Orientation :

Straight

Mount :

Through Hole

Series :

Datamate L-Tek

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

2.2A

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (AC) :

120V

HTS Code :

8536.69.40.40

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pbfree Code :

No

Contact Finish - Post :

Tin-Lead

Mating Contact Pitch :

0.079 inch

JESD-609 Code :

e0

Published :

2001

Plating Thickness :

30μin

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

UL Flammability Code :

94V-0

DIN Conformance :

No

Depth :

5.98mm

IEC Conformance :

No

Pitch - Mating :

0.079 2.00mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

100000000Ohm

Number of Rows :

2

Voltage - Rated :

800V

Contact Length - Post :

0.118 3.00mm

RoHS Status :

Non-RoHS Compliant

Number of Positions Loaded :

All

Style :

Board to Board or Cable

Number of Positions :

14

Additional Feature :

POLARIZED, SHROUDED

Reach Compliance Code :

not_compliant

Contact Resistance :

25mOhm

Current Rating :

3A

Number Of PCB Rows :

2

Insulation Color :

Black

Operating Temperature :

-55°C~125°C

Durability :

500 Cycles

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Fastening Type :

Latch Holder

Connector Type :

PLUG

Housing Material :

Polyester

ECCN Code :

EAR99

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Shape :

Circular

Contact Gender :

Male

Option :

GENERAL PURPOSE

Contact Type :

Male Pin
