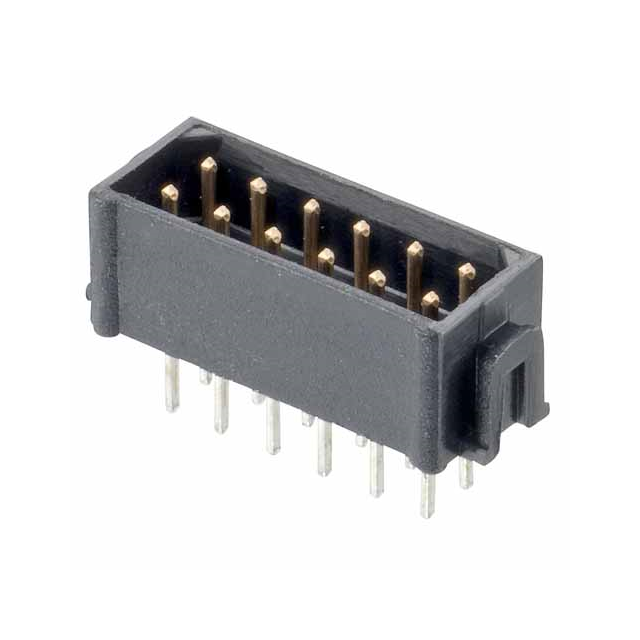

M80-8691205

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.079 (2.00mm)

Current Rating (Amps) :

2.2A

Mounting Type :

Through Hole

RoHS Status :

Non-RoHS Compliant

PCB Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

No

JESD-609 Code :

e4

Termination :

Solder

Series :

Datamate L-Tek

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Reach Compliance Code :

not_compliant

Number of Positions :

12

Length - Termination :

0.118 inch

Contact Gender :

Male

Insulation Material :

Polyester, Glass Filled

Contact Type :

Male Pin

Number of Conductors :

ONE

Connector Type :

PLUG

Pbfree Code :

No

Option :

GENERAL PURPOSE

Number of Rows :

2

Operating Temperature :

-55°C~125°C

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

Fastening Type :

Latch Holder

Packaging :

Tube

Contact Finish - Mating :

Gold

Insulation Color :

Black

ECCN Code :

EAR99

Mixed Contacts :

No

Voltage - Rated :

800V

Mating Contact Pitch :

0.079 inch

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Number Of PCB Rows :

2

Durability :

500 Cycles

Additional Feature :

POLARIZED, SHROUDED

Reliability :

COMMERCIAL

Mount :

Through Hole

Insulation Resistance :

100000000Ohm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Reference Standard :

UL

HTS Code :

8536.69.40.40

Plating Thickness :

30μin

Contact Material :

Phosphor Bronze

Insulation Height :

0.219 5.56mm

Number of Positions Loaded :

All

Contact Shape :

Circular

Contact Length - Post :

0.118 3.00mm

Published :

2013

Style :

Board to Board or Cable

MIL Conformance :

No
