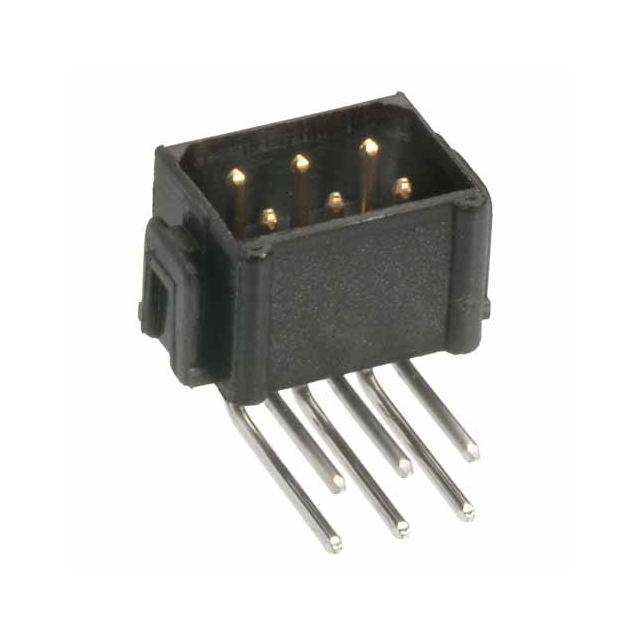

M80-8684422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Termination :

Solder

Pitch - Mating :

0.079 2.00mm

Reliability :

COMMERCIAL

Length - Termination :

0.118 inch

Filter Feature :

No

Mount :

Through Hole

Contact Shape :

Circular

Pbfree Code :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Gold

ECCN Code :

EAR99

Durability :

500 Cycles

Voltage - Rated :

120V

Shrouding :

Shrouded - 4 Wall

Mixed Contacts :

No

Connector Type :

Header

Contact Plating :

Gold, Tin

Factory Lead Time :

13 Weeks

Reference Standard :

UL

Material Flammability Rating :

UL94 V-0

Reach Compliance Code :

not_compliant

Mounting Type :

Through Hole, Right Angle

Contact Gender :

Male

JESD-609 Code :

e0

Number of Rows :

2

Series :

Datamate L-Tek

Contact Finish Thickness - Post :

118.1μin 3.00μm

Insulation Resistance :

1000000000Ohm

Row Spacing - Mating :

0.079 (2.00mm)

Fastening Type :

Latch Holder

UL Flammability Code :

94V-0

Style :

Board to Board or Cable

Contact Type :

Male Pin

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Option :

GENERAL PURPOSE

Insulation Height :

0.235 5.97mm

Contact Finish - Post :

Tin-Lead

Number of Conductors :

ONE

Number of Positions :

44

Current Rating (Amps) :

2.2A

Mating Contact Pitch :

0.079 inch

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Material :

Phosphor Bronze

IEC Conformance :

No

RoHS Status :

Non-RoHS Compliant

Number of Positions Loaded :

All

MIL Conformance :

No

Feature :

Strain Relief Clips

DIN Conformance :

No

Contact Length - Post :

0.118 3.00mm

PCB Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.40

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Color :

Black

Body Length or Diameter :

3.604 inch

Packaging :

Tube

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Published :

2009
