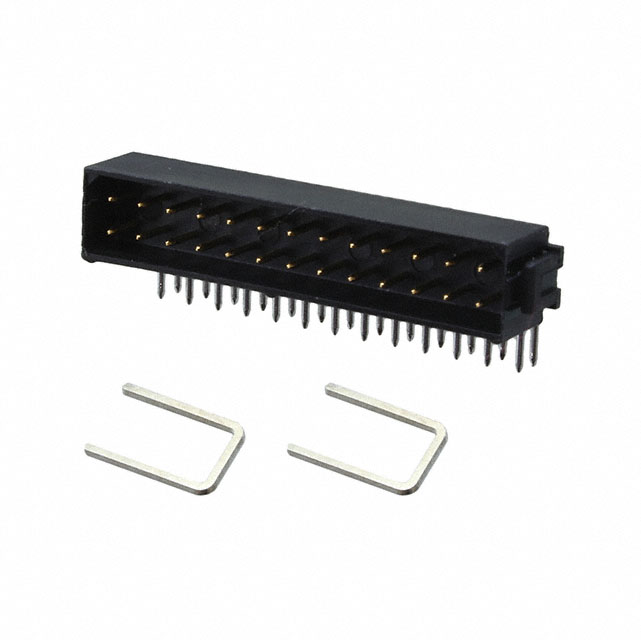

M80-8682622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Color :

Black

Style :

Board to Board or Cable

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Reach Compliance Code :

not_compliant

Orientation :

RIGHT ANGLE

IEC Conformance :

No

Number Of PCB Rows :

2

Length :

29.6mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

PCB Contact Pattern :

RECTANGULAR

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish - Post :

Tin-Lead

Material Flammability Rating :

UL94 V-0

Fastening Type :

Latch Holder

Number of Positions :

26

MIL Conformance :

No

DIN Conformance :

No

Max Voltage Rating (AC) :

120V

Contact Shape :

Circular

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Housing Material :

Polyester

Insulation Resistance :

1000000000Ohm

Insulation Height :

0.235 5.97mm

Pbfree Code :

No

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Contact Type :

Male Pin

Number of Positions Loaded :

All

Factory Lead Time :

11 Weeks

Shrouding :

Shrouded - 4 Wall

Pitch - Mating :

0.079 2.00mm

Termination :

Solder

RoHS Status :

Non-RoHS Compliant

Durability :

500 Cycles

Number of Rows :

2

Mounting Type :

Through Hole, Right Angle

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Depth :

8.13mm

Connector Type :

Header

Published :

2009

Contact Gender :

Male

Series :

Datamate L-Tek

Contact Length - Post :

0.118 3.00mm

Current Rating :

3A

ECCN Code :

EAR99

Feature :

Strain Relief Clips

Contact Resistance :

25mOhm

Contact Finish - Mating :

Gold

JESD-609 Code :

e0

Filter Feature :

No

Packaging :

Tube

Reliability :

COMMERCIAL

Reference Standard :

UL

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Max Current Rating :

3A

Mount :

Through Hole

Contact Material :

Phosphor Bronze

Contact Finish Thickness - Mating :

29.5μin 0.75μm

UL Flammability Code :

94V-0

Current Rating (Amps) :

2.2A
